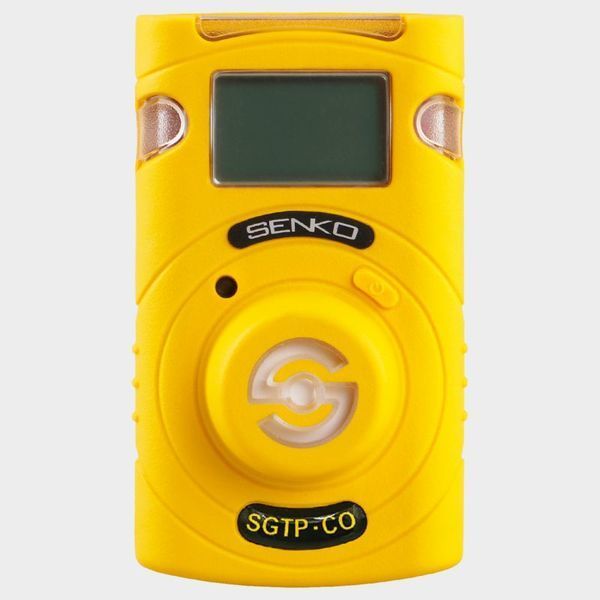

SP-SGT-P is a single replaceable gas detector designed to detect oxygen deficiency and presence of toxic gas in the ambient environment. SGT-P is the replaceable type of a gas sensor and battery. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the events that gas concentration exceeds alarm set points.
KEY FEATURE
Replaceable type (sensor and battery)
Power on / off available
Excellent water / dust proof structure
Automatic checking of the sensor trouble
High performance audible and vibrating alarm
Automatic logging of 30EA events
Easy configuration and data management through IR Link
Easy calibration through Docking Station
Product Specifications
| Model Name | SP-SGT-P |
|---|---|
| Sensor Type | Electrochemical |
| Measuring Method | Diffusion Type |
| Enclosure Material | Rubber Enclosure for enhanced durability |
| Dimensions | 54(W) x 91(H) x 32(D) mm / 2.13(W) x 3.58(H) x 1.26(D) inches |
| Weight | 93g / 3.28oz (Toxic Gas), 104g / 3.67oz (O₂) *Includes battery and clip |
| Operating Temperature Range | For CO, H₂S, H₂, NH₃, NO₂: -40°C to +50°C / -40°F to +122°F For O₂, Cl₂, HCN, HCl, PH₃, SO₂ and Others: -35°C to +50°C / -31°F to +122°F |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Operating Life | 24 months (Based on 2 minutes of alarm per day) |
| Event Log | Supports Event Logging |
| Ingress Protection | IP67 – Fully dustproof and waterproof (up to 1 meter for 30 minutes) |
| Alarms | Visual: Red flashing LEDs and LCD display Vibration: Alerts with vibration Audible: 90 dB (buzzer) |
| Display | Liquid Crystal Display (LCD) for clear real-time readings |
| Battery | Type: Lithium Primary Battery Nominal Voltage: 3.6V Nominal Capacity: 1.2Ah |
| Components | Calibration Cap, Manual, Calibration and Test Certificate |
| IR-Link | For seamless data management and easy configuration |
| Warranty | 2 years from the date of purchase |
Sensor Specifications
The SGT-P is a more versatile version of the SGT, offering a wider range of gas types and the ability to replace sensors, making it ideal for long-term use and more flexible in monitoring various gases. Unlike the SGT, which is a disposable model, the SGT-P allows for sensor and battery replacement, providing continued protection and extended operational life. This flexibility makes it suitable for diverse industrial environments requiring frequent monitoring of different gases.
| Gas | Sensor Type | Measuring Range | Low Alarm | High Alarm |
|---|---|---|---|---|
| Oxygen (O₂) | Electrochemical | 0 ~ 30% Vol | 19% Vol | 23% Vol |
| Carbon Monoxide (CO) | Electrochemical | 0 ~ 500/1,000/2,000 ppm | 30 ppm | 60 ppm |
| Hydrogen Sulfide (H₂S) | Electrochemical | 0 ~ 100/200 ppm | 10 ppm | 15 ppm |
| Hydrogen (H₂) | Electrochemical | 0 ~ 1,000 ppm | 100 ppm | 500 ppm |
| Sulfur Dioxide (SO₂) | Electrochemical | 0 ~ 50 ppm | 2 ppm | 5 ppm |
| Ammonia (NH₃) | Electrochemical | 0 ~ 100/500 ppm | 25 ppm | 35 ppm |
| Nitrogen Dioxide (NO₂) | Electrochemical | 0 ~ 20 ppm | 3 ppm | 5 ppm |
| Chlorine (Cl₂) | Electrochemical | 0 ~ 20 ppm | 0.5 ppm | 1 ppm |
| Hydrogen Cyanide (HCN) | Electrochemical | 0 ~ 50 ppm | 2 ppm | 5 ppm |
| Phosphine (PH₃) | Electrochemical | 0 ~ 5 ppm | 0.5 ppm | 1 ppm |
| Chlorine Dioxide (ClO₂) | Electrochemical | 0 ~ 5 ppm | 0.1ppm | 0.3ppm |
| Hydrogen Chloride (HCl) | Electrochemical | 0 ~ 20 ppm | 1ppm | 2ppm |
