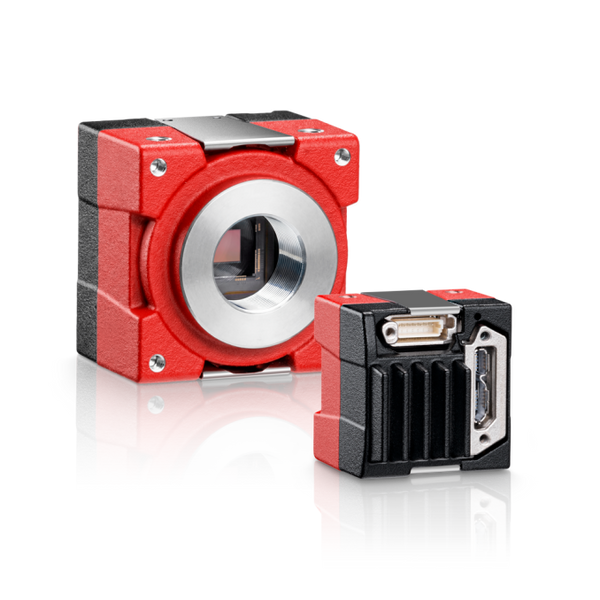

Polarization USB3 Camera Allied Vision Alvium 1800 U-507 Pol
Downloads:
PDF Instruction 1
The Allied Vision Alvium 1800 U-507 Pol is an advanced industrial camera featuring the 5.1 Megapixel Sony IMX264 CMOS sensor with polarization technology. Designed for high-demanding machine vision applications, this camera enables precise detection of material stress, surface defects, and reflections that are invisible to conventional vision systems. Its global shutter technology ensures crisp capture of moving objects at up to 34 frames per second.
Equipped with a high-speed USB3 Vision digital interface and ALVIUM System on Chip technology, the camera offers ultra-low power consumption and flexible integration into embedded vision systems. The monochrome polarization sensor operates in the spectral range from 300 nm to 1100 nm, making it ideal for accurate optical analysis and quality assurance.
Applications
- Stress and deformation analysis in glass and plastic manufacturing
- Reflection reduction and surface defect inspection on shiny materials
- Automated optical inspection in electronics and semiconductor production
- Solar panel inspection and material characterization
- Medical imaging and polarimetric microscopy
Specifications
| Model | Alvium 1800 U-507 Pol |
| Sensor Model | Sony IMX264 Polarizer CMOS |
| Resolution | 2464 x 2056 (5.10 MP) |
| Frame Rate | 34 fps |
| Sensor Size | 2/3 inch (8.5 x 7.1 mm) |
| Pixel Size | 3.45 um x 3.45 um |
| Shutter Type | Global Shutter |
| Spectral Range | 300 nm to 1100 nm |
| Digital Interface | USB3 Vision (USB 3.1 Gen 1) |
| Bit Depth | 12-bit |
| Exposure Time | 28 us to 10 s |
| Gain Range | 0.0 dB to 48.0 dB |
| I/O Lines | 4 programmable GPIOs |
| Lens Mount | C-Mount / CS-Mount |
| Dimensions | 38 x 29 x 29 mm |
| Weight | 60 g |
Package Contents
- Allied Vision Alvium 1800 U-507 Pol camera module
- C-Mount / CS-Mount adapter
- Safety instructions and quick start documentation
