Power Quality Analyzer Janitza UMG 605-PRO DIN Rail Class S

Available for order
Item: UMG 605-PRO
Check the price
Log in to the site to
add the item to your wish list
%
Login to display the cumulative discount
Get a Quote
Log in to the site to
add the item to the waiting list
Description

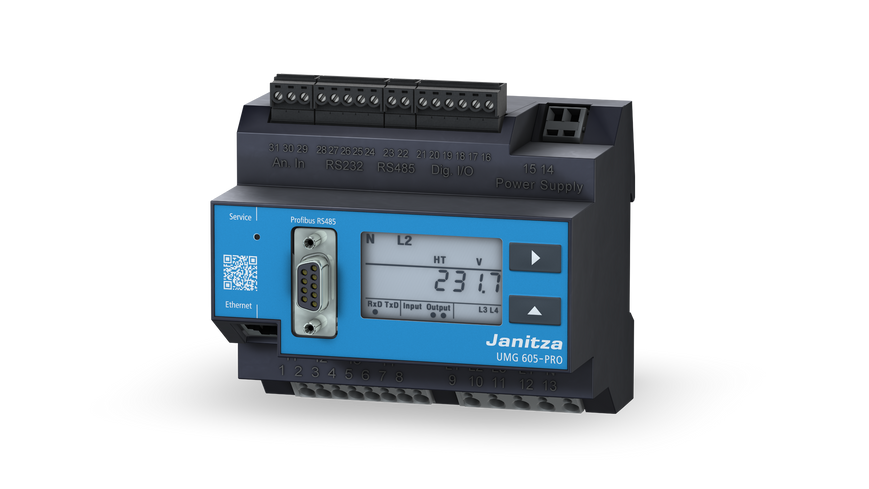

Power Quality Analyzer Janitza UMG 605-PRO

Downloads:
PDF Instruction 1
PDF Instruction 2

The Janitza UMG 605-PRO is a high-performance power quality analyzer designed for continuous monitoring of electrical distribution systems in compliance with EN 50160 and EN 61000-2-4 standards. Engineered for DIN rail mounting, it offers continuous sampling across 4 voltage and 4 current channels at 20 kHz, capturing voltage sags, swells, transients over 50 us, and short-term interruptions.

Equipped with 128 MB onboard flash memory storing up to 5,000,000 measurements, the device ensures reliable long-term data logging for up to two years. Featuring an integrated Ethernet Modbus gateway, embedded web server, and Jasic programming language, the UMG 605-PRO provides seamless integration into SCADA, PLC, and building automation architectures via RS485, RS232, Profibus DP V0, and BACnet protocols.

Areas of application

  • Continuous power quality monitoring in industrial power distribution
  • Ethernet gateway for subordinate energy metering devices
  • Analysis of grid disturbances, flicker, and harmonic distortion
  • Automated report generation per EN 50160, IEEE 519, and CBEMA curves
  • Control tasks and integration into BMS or PLC control systems

Specifications

ParameterValue
Measurement ClassClass S
Power Quality StandardsEN 50160, EN 61000-2-4, IEEE 519
Harmonics Analysis1st to 63rd harmonics (even and odd)
Measurement Channels4 Voltage inputs, 4 Current inputs (including N/PE)
Sampling Rate20 kHz per channel
Memory Capacity128 MB (approx 5,000,000 recorded values)
Communication InterfacesEthernet, RS485, RS232
Supported ProtocolsModbus RTU, Modbus TCP, Profibus DP V0, BACnet
Digital I/O2 Digital Inputs, 2 Digital Outputs
Supply Voltage95-240 V AC / 135-340 V DC (Item 5216227)

Package contents

  • Janitza UMG 605-PRO power quality analyzer
  • Terminal connection blocks set
  • Installation and user manual
  • Factory calibration certificate
