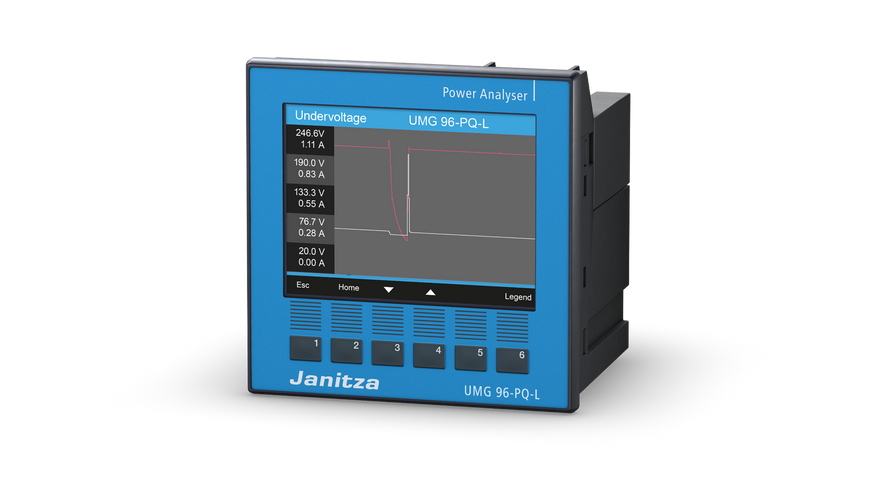

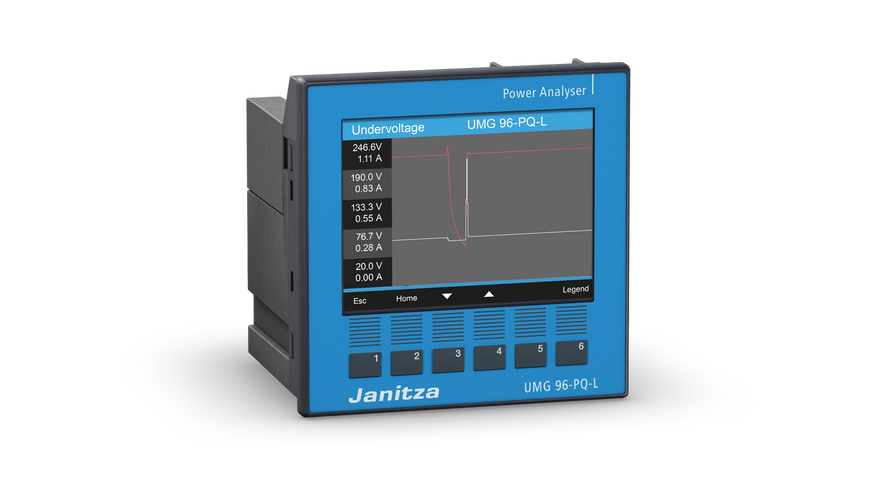

Power Quality Analyzer Janitza UMG 96-PQ-L
Downloads:
PDF Instruction 1
PDF Instruction 2
The Janitza UMG 96-PQ-L is an advanced modular network analyzer designed for comprehensive power quality analysis and energy management. Equipped with active energy measurement accuracy of class 0.2S and 64 MB onboard flash memory, this device guarantees detailed recording of full-wave events, voltage dips, and harmonics up to the 65th order over extended operating periods.

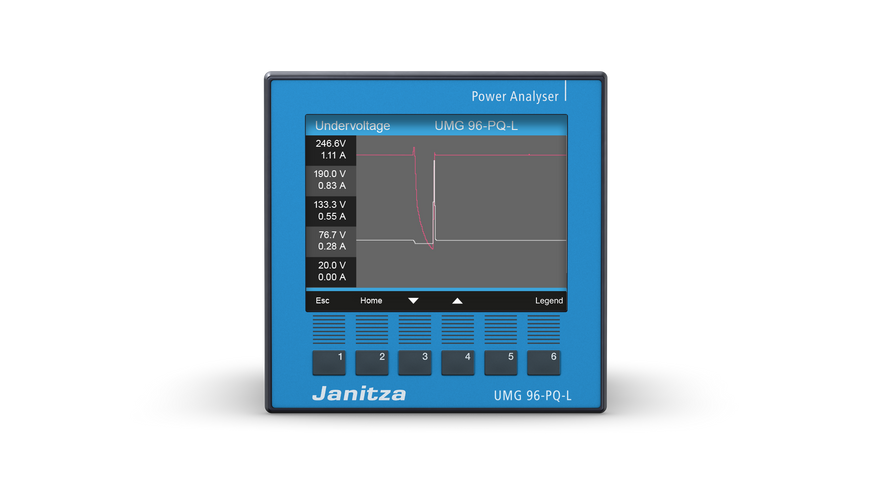

Featuring integrated residual current monitoring (RCM) and direct temperature measurement capabilities, the analyzer ensures proactive system safety and equipment protection. Its high-resolution color graphic display allows intuitive local visualization of phasor diagrams, oscilloscope wave shapes, drag indicators, and real-time status alerts.
With full support for IEC 61000-4-30 Class S standards, standard-compliant assessment according to EN 50160 and IEEE 519 is achieved effortlessly. Integrated Ethernet and RS485 communication interfaces with Modbus Gateway function ensure seamless integration into industrial automation networks and GridVis energy management software.
Application Scope
- Continuous monitoring of power quality in distribution panels and IT systems
- Energy management and compliance audit according to ISO 50001 standards
- Residual current monitoring RCM for early fault detection and fire prevention
- Analysis of harmonics, flickers, and transient voltage fluctuations
- Sub-metering and precise active energy measurement class 0.2S
Technical Specifications
| Parameter | Value |
| Display | Color graphic LCD with 6-button operation |
| Active Energy Class | 0.2S (.../5 A) |
| Harmonic Analysis | 1st to 65th order (Voltage / Current) |
| Sampling Rate | 280 sampling points per full wave |
| Memory Depth | 64 MB Flash (up to 15 years data retention) |
| Standards Compliance | IEC 61000-4-30 Class S, EN 50160, IEEE 519 |

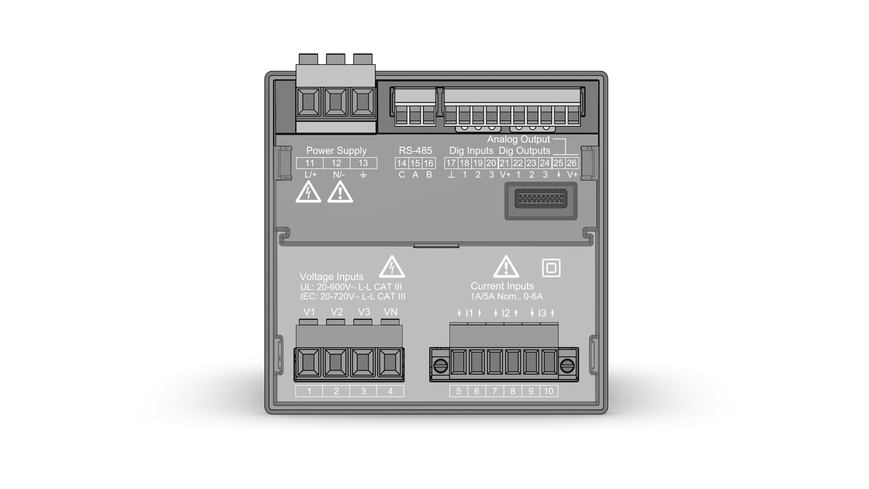

| Interfaces | Ethernet RJ45, RS485 |
| Protocols | Modbus RTU, Modbus TCP/IP, Modbus Gateway |
| Digital Inputs / Outputs | 3 Digital Inputs, 3 Digital Outputs, 1 Analog Output |
| Installation Category | 600 V CAT III, front panel 96x96 mm |
Scope of Delivery
- Janitza UMG 96-PQ-L Power Quality Analyzer
- Mounting brackets for panel installation
- Fastening elements and connectors
- Quick installation guide
