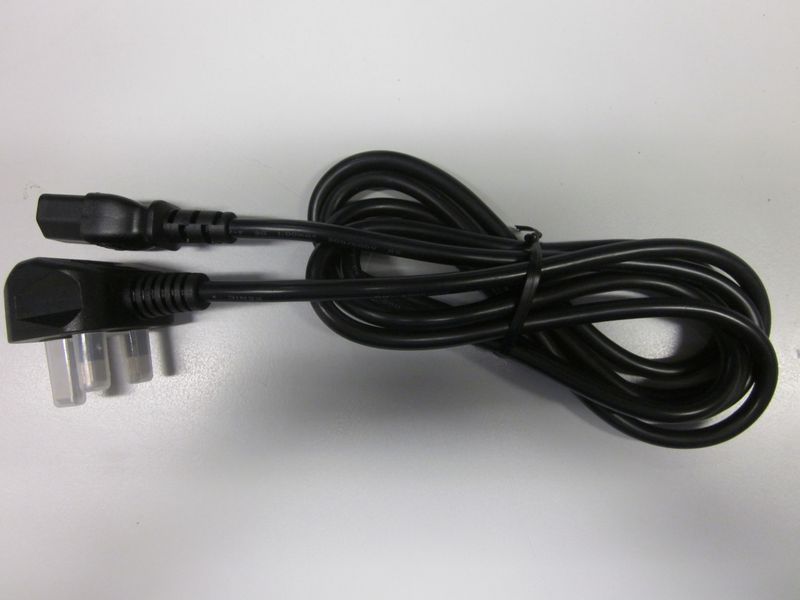

Power supply cable
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-127
Material housing: cast aluminium
Dimension housing (W×D×H): 180×310×85 mm
Dimension housing (Width): 180 mm
Dimension housing (Depth): 310 mm
Dimension housing (Height): 85 mm
Dimension completely mounted (W×D×H): 180×310×130 mm
Dimension completely mounted (Width): 180 mm
Dimension completely mounted (Depth): 310 mm
Dimension completely mounted (Height): 130 mm
Material weighing plate: stainless steel
Dimension weighing surface (Ø): 106 mm
Display type: LCD
Display digit height: 21 mm
Units: g; gn; dwt; tl (Tw); tl (HK); ozt; tl (Singap, Malays); ct; mo; lb; oz; ffa
Supplied power supply: Power supply unit
Battery / accumulator type: Li-Ion
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 8 h
Rechargeable battery operating time - backlight on: 24 h
Rechargeable battery operating time - backlight off: 48 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec
Input voltage power supply / power [Max]: 100 V - 240 V AC, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 (optional),Bluetooth (optional),Ethernet (optional),USB-Device (optional),KUP,WiFi (optional)
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 3,8 kg
Net weight: 2,4 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 400×340×220 mm
Dimensions packaging Width: 400 mm
Dimensions packaging Depth: 340 mm
Dimensions packaging Height: 220 mm
Total packaging weight: 1,5 kg
Packaging component carton/cardboard: 750 g
Packaging component Styrofoam: 750 g
Pictograms Standard: External adjustment; KERN IoT-ready; Data interface KERN Universal Port (KUP); Interface command set KERN Communication Protocol (KCP); Piece counting function; Sum function; Percentage determination function; Units switchable; Measuring with tolerance range (checkweighing function); Hold function (average value); Suspended weighing; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: EasyTouch compatible; Data interface RS-232; Data Interface USB; Data Interface Bluetooth; Data Interface WiFi; Network interface; Accredited calibration (DKD)
Pictograms Factory: Rechargeable battery
Accessories: 572-A05; CFS-A03; YKR-01; YKN-01; YKG-01; YKH-01; KUP-01; KUP-03; KUP-04; KUP-05; KUP-06; YPS-03; KUP-13; YPS-04; YPS-05; YKC-01; YKT-01; 572-A02; YKA-27
