Quantity
|
Cost
|
||
|
|
|||
|
|
|||

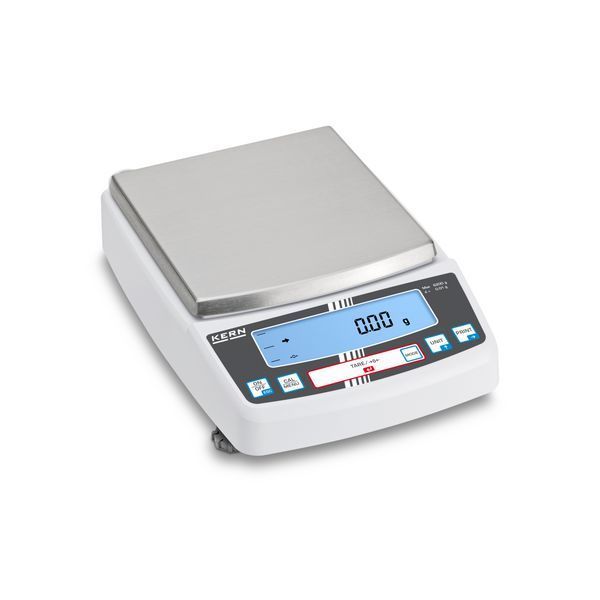

- Adjusting program CAL for quick setting of the balance accuracy using an external test weight at an additional price, see test weights
- Metal housing: robust and sturdy
- Dosage aid: High stability mode and other filter settings can be selected
- Weighing with tolerance range (checkweighing): a visual signal helps with portioning, dispensing or grading
- Summation of weight values
- Identification number: 4 digits, printed on calibration protocol freely programmable
- Automatic data output to the PC/printer each time the balance is steady
- Protective working cover included with delivery
- Laboratory applications
- Pharmaceutical applications
- quality control
- Time-based recording
Weighing range (Max): 6200 g
Readability (g): 0,01 g
Reproducibility: 0,01 g
linearity: ± 0,02 g
Supplied power supply: Power supply unit
Input voltage power supply / power [Max]: 100 - 240 V 50 / 60 HZ 1,5
Plug-in power supply / adapter for countries - included with the delivery: EURO
Plug-in power supply / adapter for countries - option: EURO,UK
Plug-in power supply type: Table power supply (separable)
Gross weight: 17 kg
Net weight: 15 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 660×590×325 mm
Dimensions packaging Width: 660 mm
Dimensions packaging Depth: 590 mm
Dimensions packaging Height: 325 mm
Total packaging weight: 2955 g
Packaging component Paper: 0 g
Packaging component carton/cardboard: 2198,52 g
Packaging component plastic: 20,685 g
Packaging component Styrofoam: 732,84 g
Packaging component foam: 0 g
Optical system: Infinity
Tube type: Trinocular
Tube angle of inclination: 45°
Interpupillary distance [Min]: 48 mm
Interpupillary distance [Max]: 76 mm
Objective quality: Infinity Plan
Standard objectives: 10× / 20× / 40× / PH 20×
Objectives magnifications: 10x / 20x / 40x
Nosepiece screw-in locations: 5
Ocular type: Eyepiece HWF 10x / Ø 22mm with anti-fungus, high eye point
Ocular magnifications: 10x
Ocular visual field: 22 mm
Illuminance: Transmitted light
Illumination type transmitted light: Halogen
Illumination intensity transmitted light: 30 W
Light distribution: 0:100
Pictograms Standard: Trinocular microscope; Abbe condenser; Halogen lighting; Phase-contrast unit; Infinity system; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Accessories: ODC 832; ODC 825; OBB-A1514; OBB-A1515; OBB-A1523; OBB-A1513; OBB-A1516; OBB-A1505; OBB-A1507; ODC 241; ODC 841; OBB-A1600; OBB-A1604; OBB-A1605; OBB-A1607; OBB-A1630; OBB-A1631; OBB-A1632; ODC 851; OCS 901; OCS-A1101; OBB-A1656; 822-903; MLB-A07; OBB-A1389; OBB-A1510; OBB-A1511; OBB-A1500; OBB-A1503; OBB-A1506; OBB-A1544
Technical Data Sheet (PDF)
