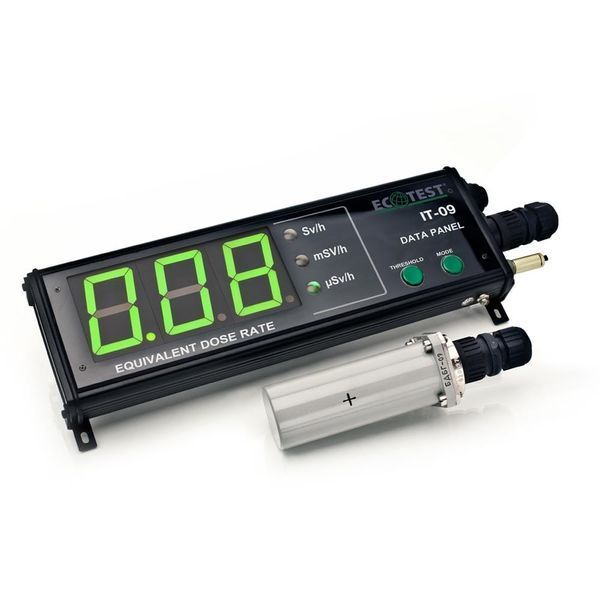

Ecotest IT-09 Radiation Information Display Panel
Downloads:
PDF Instruction 1
The Ecotest IT-09 is a professional information display unit designed for continuous 24/7 automated radiation monitoring. It operates together with the BDBG-09 gamma detection unit to display the ambient dose equivalent rate (DER) of gamma radiation in real time across industrial, nuclear, and civil protection infrastructure.
Equipped with clear audio and visual alarm signaling, the IT-09 display panel alerts personnel immediately when preset dose rate threshold levels are exceeded. Remote operation up to 50 meters between the display and the detection unit enables safe indoor display placement while monitoring indoor or outdoor environments continuously.
Application Scope
- Automated 24/7 environmental radiation monitoring systems
- Nuclear facilities, isotope laboratories, and radioactive waste storage
- Industrial radiation safety control and border check stations
- Civil defense, emergency response, and municipal security systems
- Hospital radiotherapeutic and diagnostic departments
Specifications
| DER Display Range | 0.01 – 107 µSv/h |
| Digital Display Digits | 3 digits |
| Warm-up Time | Up to 1 min |
| Operating Mode | 24/7 continuous operation |
| Supply Voltage | 12 – 16 V DC (Nominal 15 V) |
| Current Consumption | Max 0.4 A |
| Dimensions | 348 × 135 × 40 mm |
| Connecting Cable Length | 10 – 50 m (upon request) |
| Weight (Display Unit) | Max 0.95 kg |
| Enclosure Protection | IP51 |
Package Includes
- IT-09 Information Display Panel
- Power Supply Adapter
- BDBG-09 Gamma Detection Unit with Bracket (or BDBG-09S / BDBG-09V / BDBG-09SV)
- Connecting Cable (length specified upon order)
- Mounting Kit
- Operating Manual and Logbook
- Package
- Interface Converter (optional)
- Software (optional)
