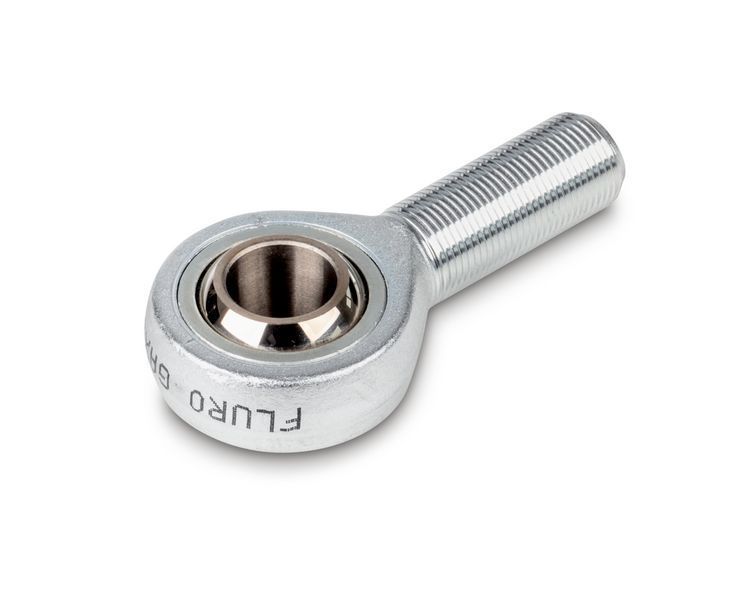

Rod end with M10-thread, galvanised steel, only suitable for models with a nominal load of 100–150 kg
Article number for DAkkS calibration (tensile force): 963-162
Article number for DAkkS calibration (compressive force): 963-262
Article number for DAkkS calibration (tensile force/compressive force): 963-362
Article number for factory calibration (tensile force): 961-162
Article number for factory calibration (compressive force): 961-262
Article number for factory calibration (tensile force/compressive force): 961-362
Material housing: metal, lacquered
Dimension housing (W×D×H): 175×75×30 mm
Dimension housing (Width): 175 mm
Dimension housing (Depth): 75 mm
Dimension housing (Height): 30 mm
Dimension completely mounted (W×D×H): 175×75×30 mm
Dimension completely mounted (Width): 175 mm
Dimension completely mounted (Depth): 75 mm
Dimension completely mounted (Height): 30 mm
Load support (tensile force): Hook
Display type: LCD
Display digit height: 8,5 mm
Supplied power supply: Accu & Power supply
Battery / accumulator type: NiMH
Rechargeable battery charging time: 8 h
Rechargeable battery operating time - backlight on: 8 h
Rechargeable battery operating time - backlight off: 10 h
Input voltage power supply / power [Max]: 100 V - 240 V
Plug-in power supply / adapter for countries - included with the delivery: EURO,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard,USB-Device,analogue (0 +/-2V)
Ambient temperature [Min] (°C): 15 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 1,6 kg
Net weight: 0,55 kg
UN number (hazardous goods): 3496
UN number (hazardous goods): Ni-MH (UN 3496, Packing Instruction #0, Not Restricted as per Special Provision A199)
Airworthy: yes, but rework required before delivery (special item)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 260×225×75 mm
Dimensions packaging Width: 260 mm
Dimensions packaging Depth: 225 mm
Dimensions packaging Height: 75 mm
Total packaging weight: 935 g
Packaging component carton/cardboard: 935 g
Measuring range force [Max] (N): 1 kN
Readability force [d] (N): 0,5 N
Overload protection (% of [Max]): 120%
Tolerance (% of [Max]): 0,2%
Measuring head measuring frequency: 1000 Hz
Directions of force: tension,compression
Pictograms Standard: Peak hold function; Push and Pull; Device-internal Memory; Data interface RS-232; Data Interface USB; Analogue interface; Units switchable; Measuring with tolerance range (checkweighing function); ZERO function; Rechargeable battery; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Pictograms Option: PC software; Factory calibration (ISO); Accredited calibration (DKD)
Accessories: AD 9021; AD 9030; AD 9031; AD 9032; AD 9033; AD 9050; AD 9090; AD 9120; AD 9205; AD 9206; AD 9250; AD 9305; AD 9310; AD 9315; FL-A04; RFL-3001; RFL-4001; AD 9302; AFM 05; AFM 06; AFM 07; AFM 12; AFM 15; AC 49; FL-A01; FL-A03
