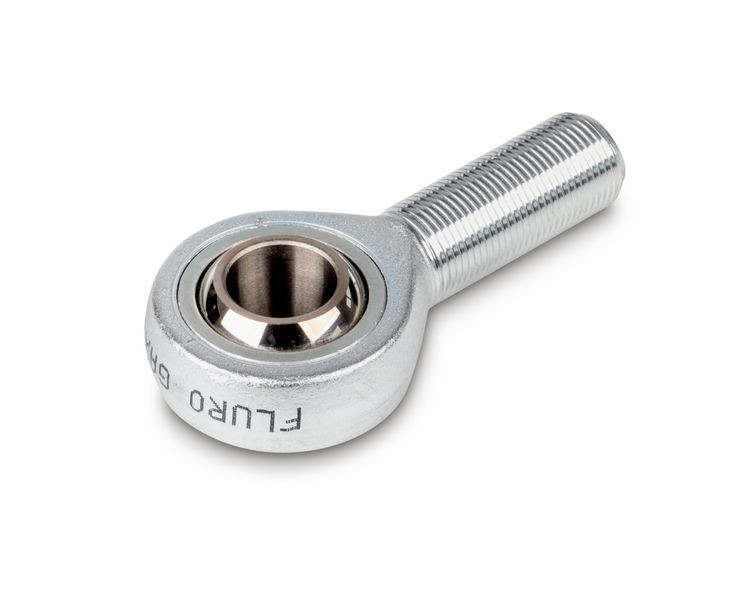

Rod end with M24×2-thread, galvanised steel, only suitable for models with a nominal load of >= 3000 kg
Article number for DAkkS calibration (tensile force): 963-161O
Article number for DAkkS calibration (compressive force): 963-261O
Article number for DAkkS calibration (tensile force/compressive force): 963-361O
Article number for factory calibration (tensile force): 961-161O
Article number for factory calibration (compressive force): 961-261O
Article number for factory calibration (tensile force/compressive force): 961-361O
Material housing: plastic
Dimension housing (W×D×H): 195×84×35 mm
Dimension housing (Width): 195 mm
Dimension housing (Depth): 84 mm
Dimension housing (Height): 35 mm
Dimension completely mounted (W×D×H): 195×84×35 mm
Dimension completely mounted (Width): 195 mm
Dimension completely mounted (Depth): 84 mm
Dimension completely mounted (Height): 35 mm
Load support (tensile force): Hook
Display type: LCD
Display digit height: 18 mm
Supplied power supply: Power supply & battery included
Battery / accumulator type: Alkali(-Manganese)
Battery: 6×1.5 V AA
Battery operating time: 25 h
Battery operating time - backlight off: 25 h
Input voltage power supply / power [Max]: 100 V - 240 V
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: UK,US
Plug-in power supply type: Power adapter
Ambient temperature [Min] (°C): 10 °C
Ambient temperature [Max] (°C): 30 °C
Gross weight: 0,90 kg
Net weight: 0,60 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 255×250×80 mm
Dimensions packaging Width: 255 mm
Dimensions packaging Depth: 250 mm
Dimensions packaging Height: 80 mm
Total packaging weight: 300 g
Packaging component Paper: 16 g
Packaging component carton/cardboard: 584 g
Packaging component plastic: 4 g
Packaging component Styrofoam: 148 g
Packaging component foam: 73 g
Measuring range force [Max] (N): 100 N
Readability force [d] (N): 0,05 N
Overload protection (% of [Max]): 200%
Tolerance (% of [Max]): 0,5%
Measuring head measuring frequency: 1000 Hz
Directions of force: tension,compression
Pictograms Standard: Peak hold function; Push and Pull; ZERO function; Prepared for battery operation; Plug-in power supply 230V/50 Hz; Package shipment 1 day
Pictograms Option: Factory calibration (ISO)
Accessories: AC 01; AC 14; AC 22; AFK 02; FK-A01; AD 9001; AD 9021; AD 9005; AD 9016; AD 9030; AD 9031; AD 9032; AD 9033; AD 9120; AD 9205; AD 9206; AD 9305; AD 9315; AC 01R; AC 03R; AC 14R; AC 22R; AE 500; AFM 22; AFM 23; FS TKZ; AE 01; AE 02; AE 03; AE 04; AE 05; AE 06; AE 07; AC 45; AC 46; AC 47; AC 430
