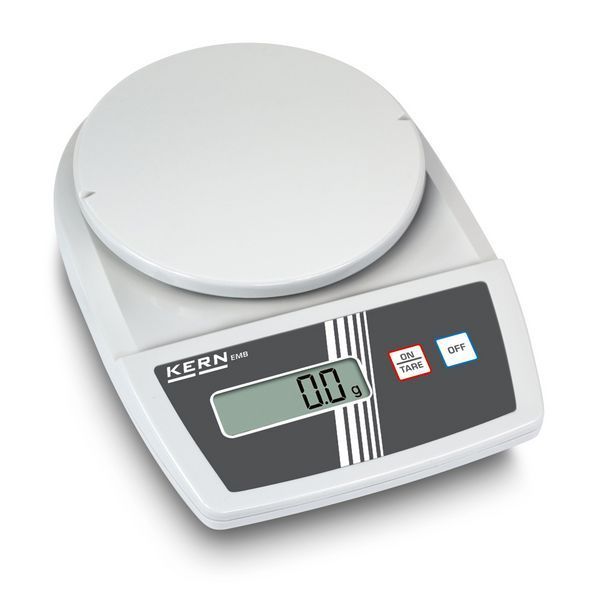

School Balance KERN EMB 500-1

Entry level laboratory balance with tremendous weighing performance

• Simple and convenient 2-key operation
• Tare function facilitates formulation work
• Particularly flat design
• Ready for use: Batteries included
• Hook for underfloor weighing standard
• Also available as KERN EMB 500-1BE Black Edition
• Note: With the optional auxiliary set for density determination KERN YDB-04 also well suited for school and teaching operation, see accessories

As School Balance

• Teaching and training
• educational institutions
• Cosmetics industry
• Quality assurance

As Small Pet Scale

• veterinary practices
• Weighing small animals
• Breeding small animals

Weighing range (Max): 500 g
Readability (g): 0,1 g
Reproducibility: 0,1 g
linearity: ± 0,2 g
Weighing system: Strain gauge
Stabilization time: 2,5 s
Article number for DAkkS calibration: 963-129
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 318×308×88 mm
Dimension weighing platform (Width): 318 mm
Dimension weighing platform (Depth): 308 mm
Dimension weighing platform (Height): 88 mm
Dimensions weighing surface (W×D): 315×305 mm
Dimension weighing surface (Width): 315 mm
Dimension weighing surface (Depth): 305 mm
Display type: LCD
Display digit height: 25 mm
Units: kg; g; dwt; tl (Tw); tl (HK); ozt; mo; lb; oz; ffa; tol
Supplied power supply: Power supply unit
Battery / accumulator type: NiMH
Rechargeable battery optional: Rchrg. battery optional
Rechargeable battery charging time: 10 h
Rechargeable battery operating time - backlight on: 15 h
Rechargeable battery operating time - backlight off: 30 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off
Battery: 9 V block
Battery operating time: 12 h
Input voltage power supply / power [Max]: 220 V - 240 V AC, 50 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 8 kg
Net weight: 7 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 530×420×170 mm
Dimensions packaging Width: 530 mm
Dimensions packaging Depth: 420 mm
Dimensions packaging Height: 170 mm
Total packaging weight: 932 g
Packaging component carton/cardboard: 466 g
Packaging component Styrofoam: 466 g
Pictograms Standard: External adjustment; Data interface RS-232; Piece counting function; Sum function; Percentage determination function; Units switchable; Hold function (average value); Prepared for battery operation; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Accessories: DE-A10; DE-A13; YKN-01; YKI-02; AFH 13; YKG-01; 572-926; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; NDE-A02; DE-A12; YKA-06
Technical Data Sheet (PDF)
