Search Dosimeter-Radiometer Ecotest MKS-07 POSHUK
Downloads:
PDF Instruction 1
The Ecotest MKS-07 POSHUK is a high-precision multi-purpose search instrument designed for detecting and localizing sources of ionizing radiation. Operating with gamma and beta detection probes in the standard kit, it provides comprehensive emergency response and environmental monitoring capabilities. The system supports optional alpha and neutron detection probes, communicating via a robust RS-485 interface.

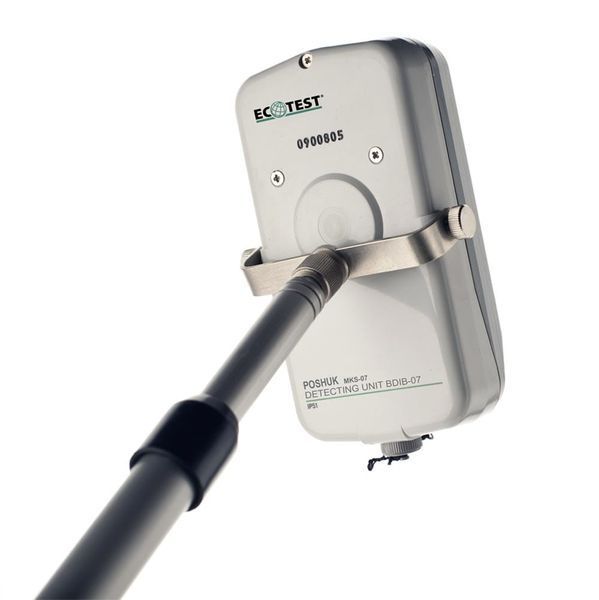

Equipped with a telescopic extension pole extending up to 143 cm, backlighting, and an analog intensity indicator, the device allows operators to work safely at a distance from dangerous radiation sources. Up to 4096 measurement records can be stored in non-volatile memory and transmitted to a PC via an integrated infrared port for detailed radiological report generation.
Applications
- Detection and localization of orphan radioactive sources in industrial facilities
- Customs control and border safety monitoring
- Emergency response services and civil defense radiological surveys
- Radiological monitoring at nuclear power plants and research laboratories

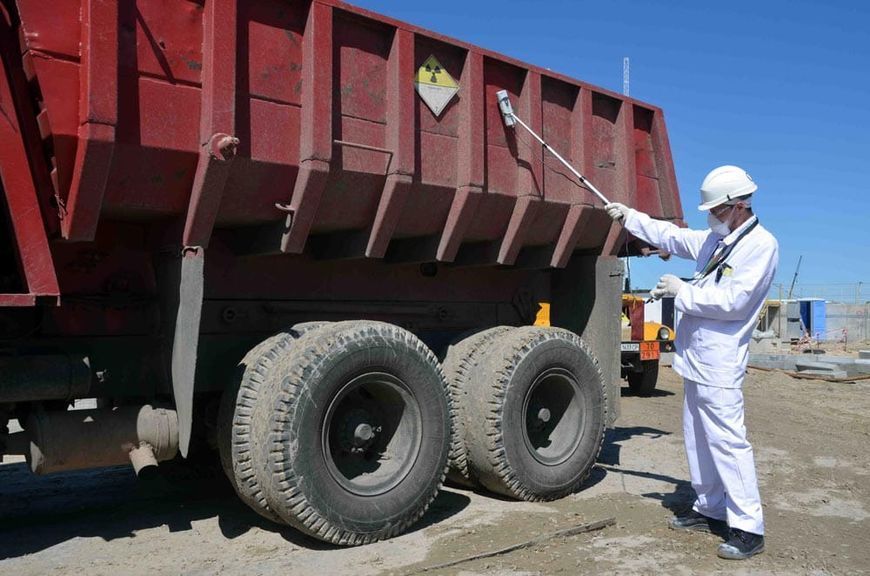

- Environmental survey and scrap metal radiation screening
Specifications
| Gamma Dose Equivalent Rate (DER) Range | 0.1 to 2000000 uSv/h |
| Gamma Dose Equivalent (DE) Range | 0.001 to 9999 mSv |
| Gamma Energy Range | 0.05 to 3.0 MeV |
| Beta Flux Density Range | 5 to 100000 particles/(cm2 min) |
| Beta Energy Range | 0.15 to 3.0 MeV |
| Basic Relative Error (Precise Mode) | 15% plus fraction |
| Data Interface | RS-485 for probes, IrDA for PC |
| Non-volatile Memory Capacity | 4096 measurement results |
| Ingress Protection Rating | IP51 dust and splash resistant |
| Continuous Operating Time | At least 400 hours |
| Operating Temperature Range | -25 C to +55 C |
| Telescopic Pole Length | 43 cm to 143 cm |
| Control Unit Weight and Dimensions | 0.4 kg, 96 x 35 x 148 mm |

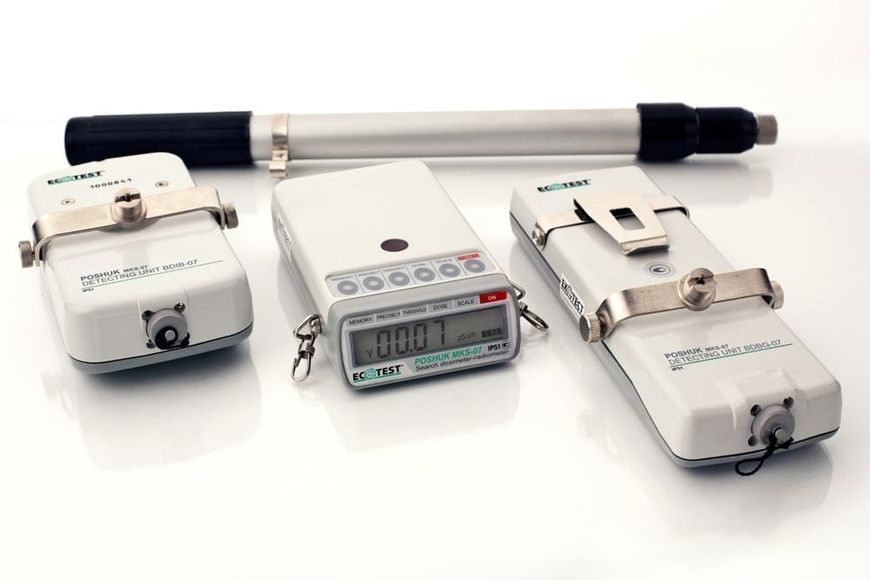

Package Contents
- MKS-07 Control Unit
- BDBG-07 Gamma Detection Probe
- BDIB-07 Beta Detection Probe
- Telescopic Extension Pole
- Connecting Cable
- Two Swivel Holders for Probes
- Battery Charger
- Operating Manual and Logbook
- Packing Case
