Search Dosimeter-Radiometer Ecotest MKS-07M POSHUK
Downloads:
PDF Instruction 1
The multi-purpose search dosimeter MKS-07M POSHUK is developed by Ecotest experts for precise detection and localization of alpha, beta, gamma, X-ray, and neutron radiation sources. Equipped with an integrated GPS module, telescopic extension pole, and non-volatile memory storing up to 94,208 records, this system delivers supreme accuracy in demanding field and industrial environments.
The instrument features automatic gamma background subtraction during beta radiation measurement, as well as continuous self-diagnostics of detector units. Measurement results complete with geographic coordinates and timestamps are transferred via USB Type-C to the POSHUK READER software for comprehensive analysis.
Scope of Application
- Search radiation monitoring and localization of radioactive sources
- Civil defense, emergency response services, and environmental monitoring
- Customs inspections of cargo, vehicles, and raw materials
- Nuclear facilities, radiochemical laboratories, and industrial inspection
- Territorial radiation surveys with precise GPS mapping
Specifications
| Parameter | Value |
| Detected radiation types | Alpha, Beta, Gamma, X-Ray, Neutron |
| Gamma DER measurement range | 1.0 ... 1e7 uSv/h |
| Gamma DE measurement range | 0.1 ... 1e8 uSv |
| Energy range of photon radiation | 0.05 ... 10 MeV |
| Basic relative error limit | Not more than 15% |
| Beta flux density range (BDIB-07M) | 0.5 ... 5e5 part/(cm2 min) |
| Alpha flux density range (BDPA-07M) | 0.05 ... 4e5 part/(cm2 min) |
| Neutron DER range (BDPN-07M) | 0.1 ... 1e4 uSv/h |
| Built-in memory capacity | 94,208 records with GPS tags |
| Communication interface | USB Type-C |
| Power supply | Li-Ion 18650 battery, 3.7V, 3500 mAh |
| Continuous operating time | 24 to 160 hours |
| Ingress protection rating | Control unit IP56, Detection units IP65 |
| Operating temperature range | -25 to +55 C |
Package Contents
- Control unit MKS-07M POSHUK

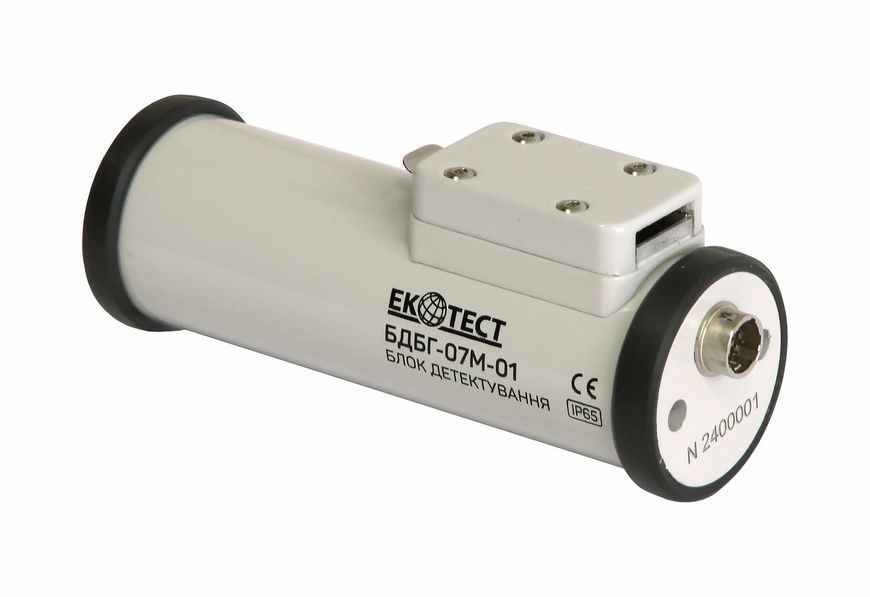

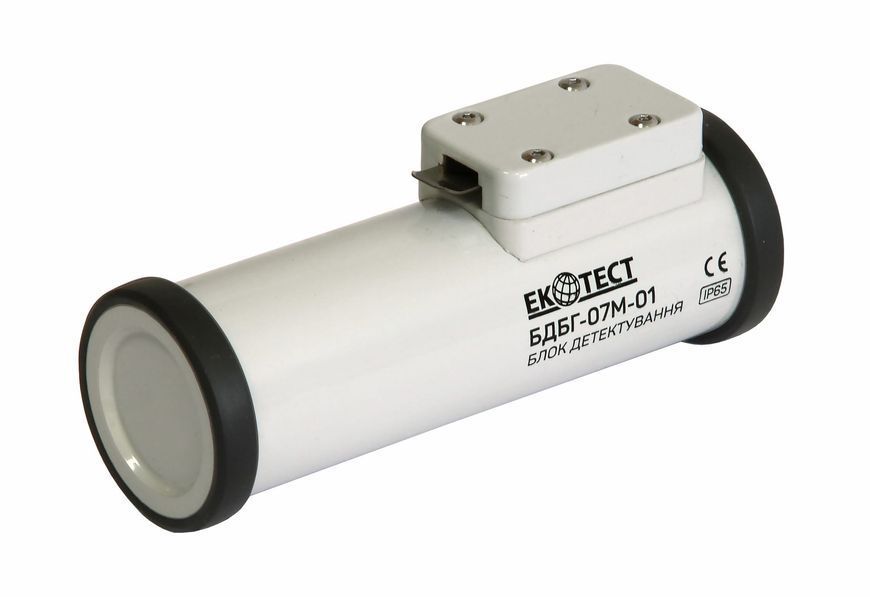

- Gamma detection block BDBG-07M-01
- Gamma detection block BDBG-07M-02

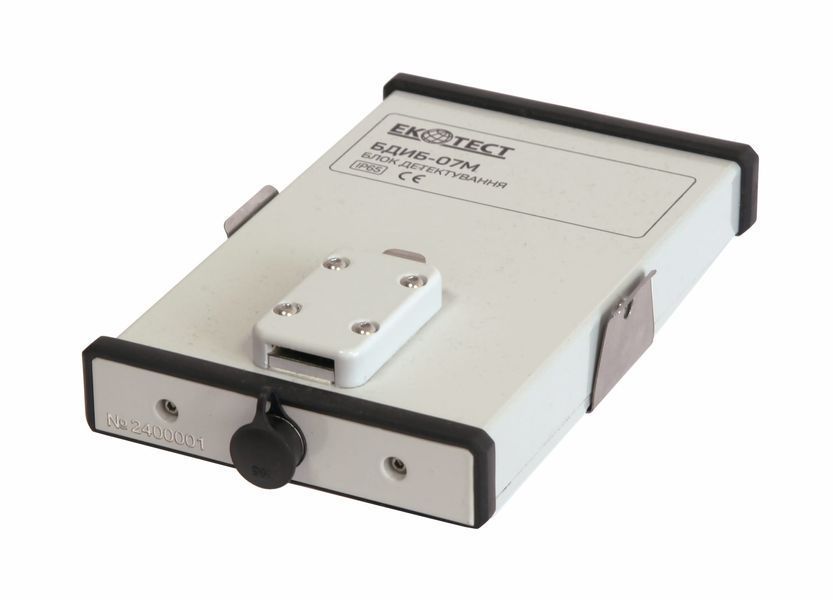

- Beta detection block BDIB-07M

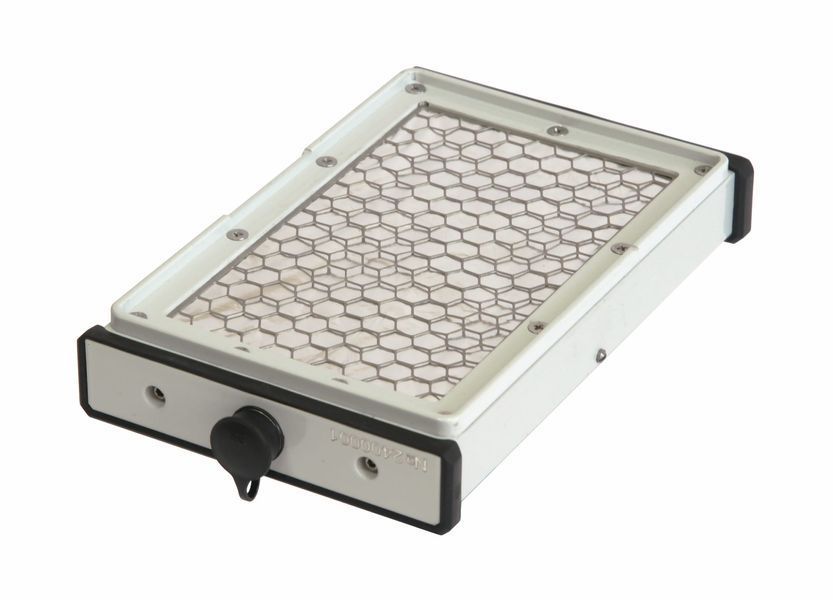

- Alpha detection block BDPA-07M

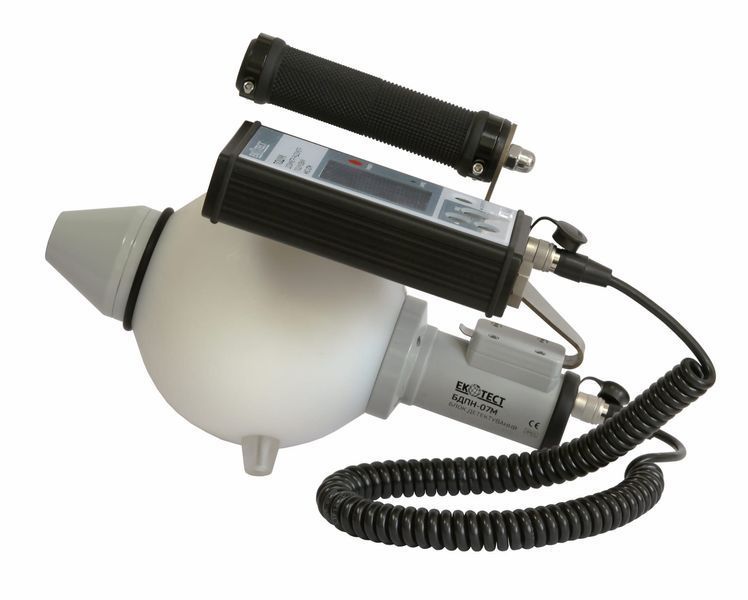

- Neutron detection block BDPN-07M
- Telescopic pole 1.5 m
- Connecting cable and USB Type-C cable
- 5V power adapter and POSHUK READER software on USB drive
- Spare parts kit for BDPA-07M and BDIB-07M
- User manual and transport packaging
