Search Radiation Identifier Dosimeter Ecotest MKS-11GN SPECTRA
Downloads:
PDF Instruction 1

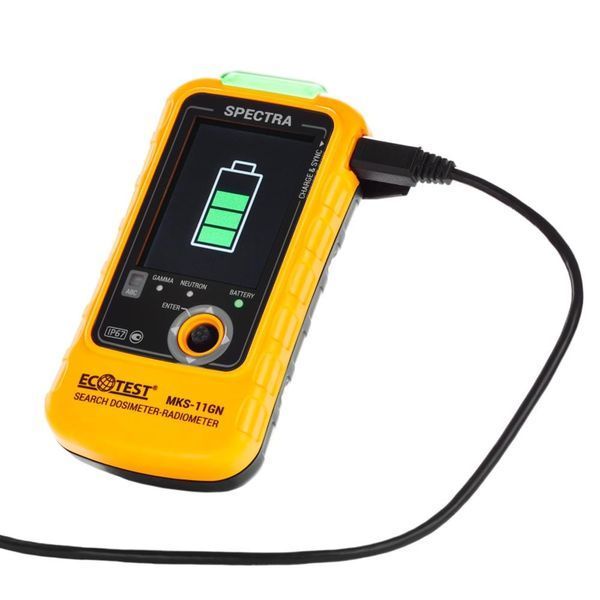

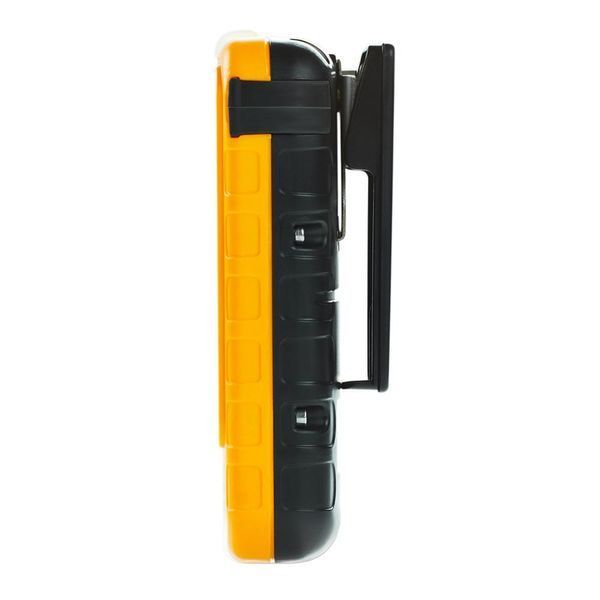

The MKS-11GN SPECTRA is an advanced search dosimeter-radiometer and spectroscopic identifier engineered for fast detection, search, and real-time identification of radioactive and nuclear materials via gamma and neutron radiation. Utilizing state-of-the-art CsI(Tl) and LiI(Eu) scintillation detectors coupled with solid-state silicon photomultipliers (SiPM), the device delivers exceptional thermal stability and completely eliminates microphone effects.
Compliant with international standards ANSI 42.48, ANSI 42.32, and ANSI 42.33, SPECTRA performs real-time radionuclide identification categorized according to IAEA requirements (medical, industrial, special nuclear, and naturally occurring radioactive materials). The integrated non-volatile memory records up to 250 complete 2048-channel gamma spectra, which can be analyzed and mapped alongside GPS data using dedicated PC software.
Application Fields
- Border security and customs checkpoint control to prevent illicit nuclear material trafficking
- Radiation monitoring at industrial plants and critical infrastructure facilities
- Emergency response units, hazmat teams, and civil defense organizations
- Law enforcement agencies and security services during search operations
- Radiological research laboratories and environmental safety monitoring
Technical Specifications
| Gamma Detector | CsI(Tl) scintillation detector with SiPM photodetector |
| Neutron Detector | LiI(Eu) scintillation detector with SiPM photodetector |
| Gamma Sensitivity (137Cs) | Not less than 400 (cps)/(uSv/h) |
| Gamma DER Range | 0.01 uSv/h to 10 Sv/h |
| Gamma DE Range | 0.1 uSv to 9.9 Sv |
| Spectrum Channels | 2048 channels |
| Energy Range | 0.02 MeV to 3.0 MeV |
| Continuous Operation Time | Up to 200 hours from internal Li-Po battery |
| Interface and Power | USB port, built-in 3.7V rechargeable Li-Po battery |
| Operating Temperature Range | -20 to +50 C |
| Dimensions and Weight | 67 x 127 x 45 mm, max 0.28 kg |
Package Content
- MKS-11GN SPECTRA search dosimeter-radiometer
- Mains charger adapter
- Shielded USB cable
- Software on electronic media
- 232Th calibration source for detector aging compensation
- Operating manual
- Protective carrying case
