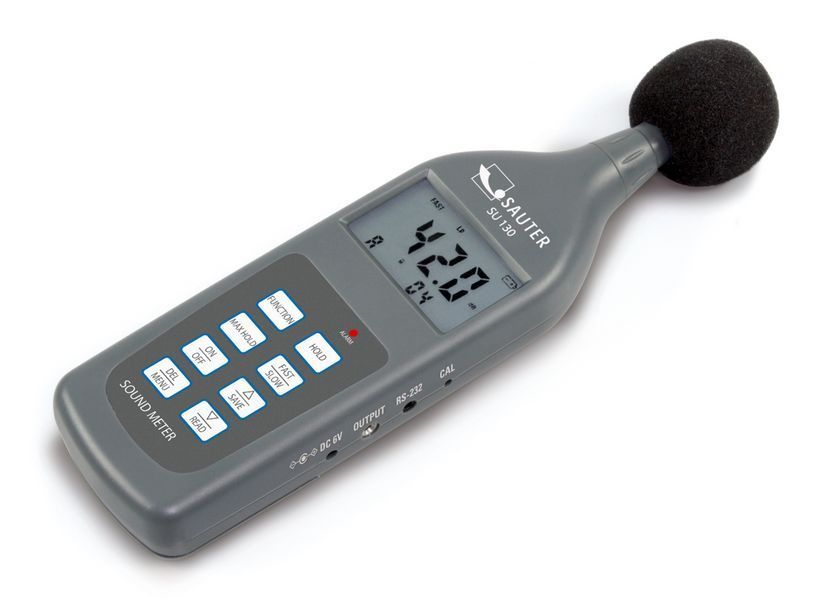

- Sound level meter with basic functions for measuring noise in areas such as, environment, mechanical applications, car industry and much more
- Measures the sound intensity in the workplace
- Helps in differentiating between normal noise influences, and excessive noise, nuisances e.g. in a production hall

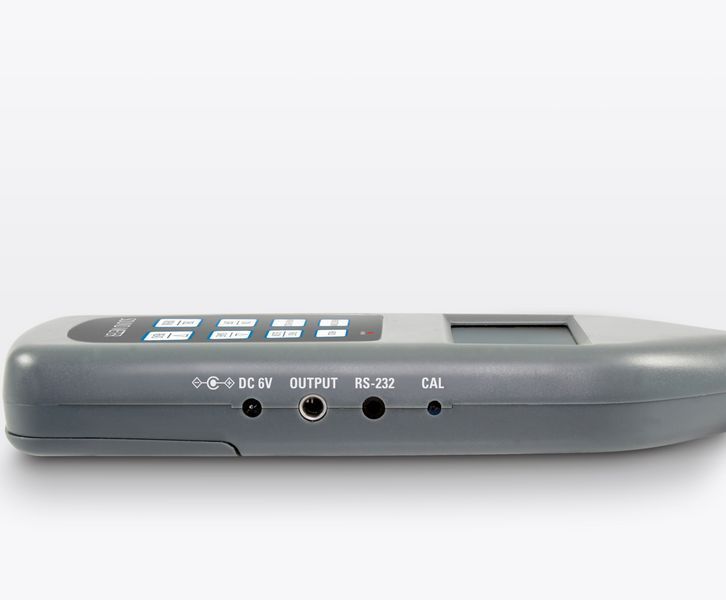

- Data interface RS-232, included
- Multi measuring functions:
Lp: Standard sound level measuring function
Leq: Energy equivalent sound level measuring mode (type A)
Ln: Shows the deviation from a pre-defined limit in % - Selectable methods of evaluation:
A: As sensitive as the human ear
C: Sensitive for noisier environmental conditions, where there are machines, plant, motors etc.
F: For areas with constant sound intensity - Limit value function: programmable value for the maximum level value
- Track function for continuous recording of changing environmental conditions
- Peak Hold function to capture peak value
- Internal memory for 30 measured values, transferable to PC with SAUTER ATC-01

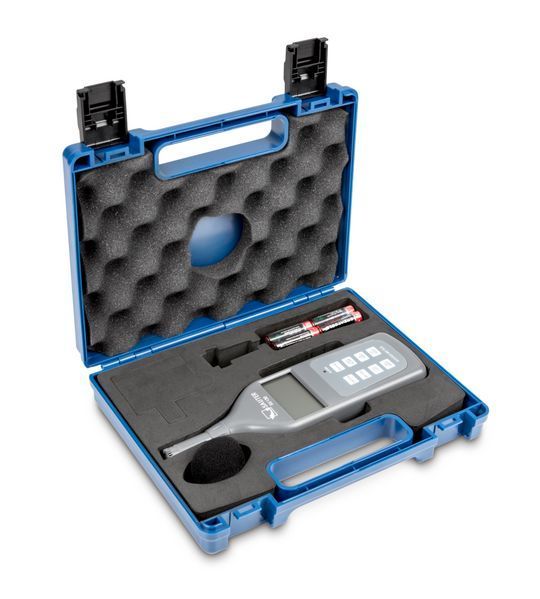

- Delivered in a robust carrying case
- Schools
- Workplace
- Transport
- Industry and assembly hall
- Automotive industry
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for DAkkS calibration: 963-128
Material housing: plastic
Dimension housing (W×D×H): 165×280×75 mm
Dimension housing (Width): 165 mm
Dimension housing (Depth): 280 mm
Dimension housing (Height): 75 mm
Dimension completely mounted (W×D×H): 165×280×75 mm
Dimension completely mounted (Width): 165 mm
Dimension completely mounted (Depth): 280 mm
Dimension completely mounted (Height): 75 mm
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 165×165×73 mm
Dimension weighing platform (Width): 165 mm
Dimension weighing platform (Depth): 165 mm
Dimension weighing platform (Height): 73 mm
Dimensions weighing surface (W×D): 160×160 mm
Dimension weighing surface (Width): 160 mm
Dimension weighing surface (Depth): 160 mm
Display type: LCD
Display digit height: 21 mm
Units: g; dwt; tl (Tw); tl (HK); ozt; mo; lb; oz; ffa; tol
Supplied power supply: Power supply unit
Rechargeable battery optional: Rchrg. battery optional
Rechargeable battery charging time: 10 h
Rechargeable battery operating time - backlight on: 12 h
Rechargeable battery operating time - backlight off: 24 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off
Battery: 9 V block
Battery operating time: 12 h
Input voltage power supply / power [Max]: 220 V - 240 V AC, 50 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: US
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 5 °C
Ambient temperature [Max] (°C): 35 °C
Gross weight: 2,4 kg
Net weight: 2,0 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 245×350×170 mm
Dimensions packaging Width: 245 mm
Dimensions packaging Depth: 350 mm
Dimensions packaging Height: 170 mm
Total packaging weight: 549 g
Packaging component Paper: 0 g
Packaging component carton/cardboard: 734 g
Packaging component plastic: 9 g
Packaging component Styrofoam: 242 g
Packaging component glass: 0 g
Packaging component wood: 0 g
Packaging component metal: 0 g
Packaging component foam: 0 g
Pictograms Standard: External adjustment; Data interface RS-232; Piece counting function; Net-Total function; Percentage determination function; Units switchable; Hold function (average value); Prepared for battery operation; Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Accessories: YKF-01; PCD-A03; YKN-01; YKI-02; PCD-A05S05; 326-14; YKG-01; YKH-01; 572-926; YPS-03; YPS-04; YPS-05; YKC-01; YKI-10; YKI-11; YKI-12; YKT-01; 470-902-003; PCD-A04; PCD-A05
Technical Data Sheet (PDF)
