- Ideal for measurements for workplaces outdoor, e.g. at airports, on building sites, in road traffic etc. with wide frequency access
- Modern microcontroller architecture for increased stability and accuracy
- A specially-developed algorithm permits a compliant dynamic range of > 123 dB
- Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting

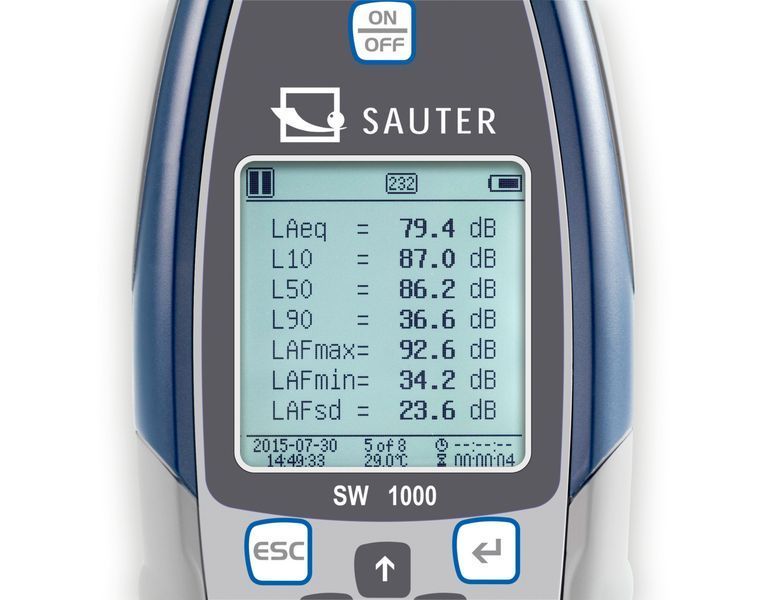

- LN statistics and display of the graph showing the progression of time
- User-defined integral interval measurement up to a maximum of 24 hours is possible
- Frequency weighting (filter) A, B, C, Z
- Time interval during measurement: F (fast), S (slow), I (pulse)
- Freely-definable limits for the output of an optical alarm signal
- Peak Hold function to capture peak value

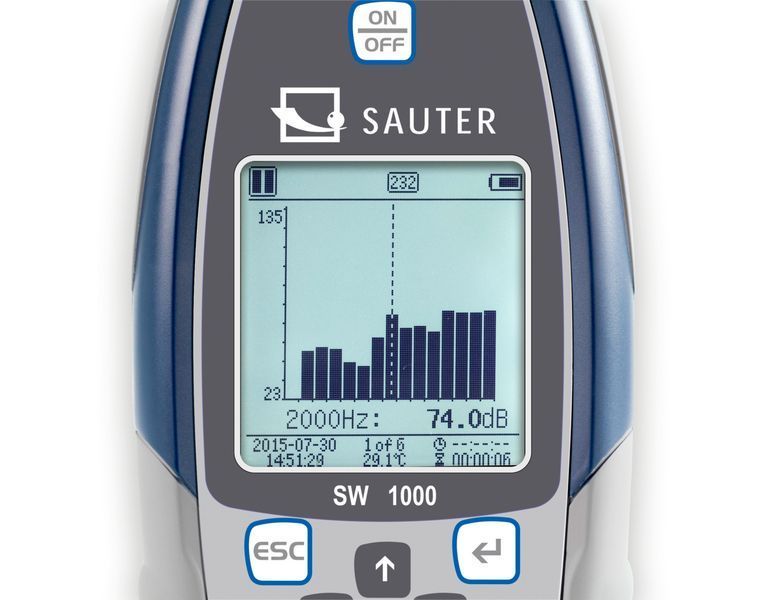

- Octave function for targeted sound analysis, can be expanded to 1/3 octave through the purchase of a licence
- TRACK function with graphic display of a measurement
- Calibration mode (with optional calibrator)

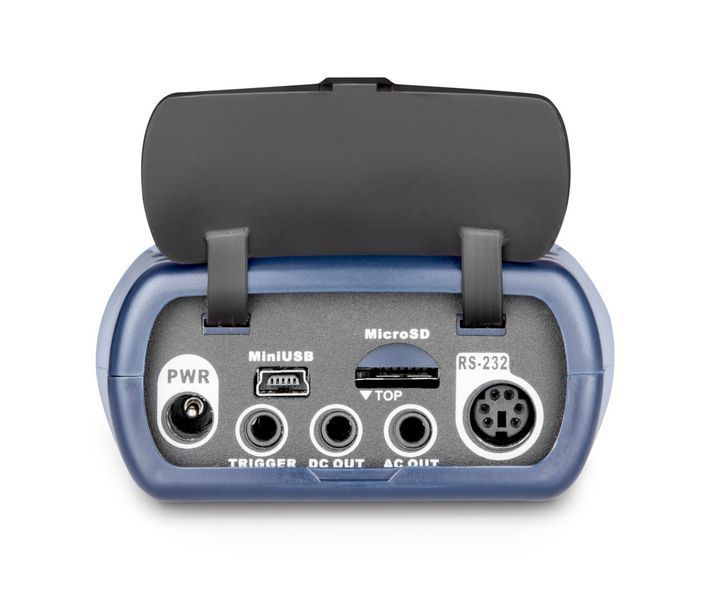

- Trigger mode: external start/stop of measurement via 3,5 mm connector
- Automatic measurement for timer function is possible
- Operating languages: EN, DE, FR, ES, PT
- Option of fitting a stand on the rear of the housing, ¼" thread

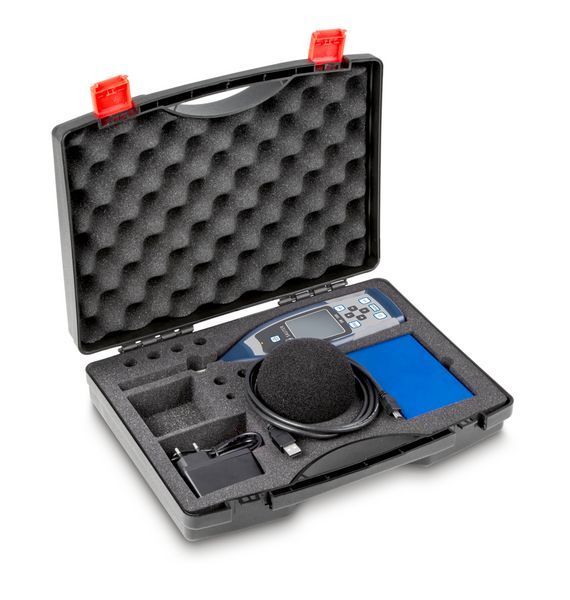

- Delivery in robust transport case
- Occupational safety and industry
- Construction and building sites
- Event and sound technology
- Environmental protection
- Research and development
- Technical test centres and experts
- Acoustic laboratories
Article number for DAkkS calibration: 962-438
Weight OIML class: F2
Test weight - nominal value: 200 g
Permissible tolerance according to OIML (+/-): 3 mg
Article number wooden case: 337-080-200
Article number plastic case plastic: 347-080-400
Article number aluminium case: 317-080-600
Gross weight: 0,20 kg
Net weight: 0,20 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 28×28×48 mm
Dimensions packaging Width: 28 mm
Dimensions packaging Depth: 28 mm
Dimensions packaging Height: 48 mm
Total packaging weight: 0 g
Packaging component plastic: 0 g
Pictograms Standard: Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Accessories: 337-080-200; 347-080-400; 317-080-600; 315-242; 315-243
