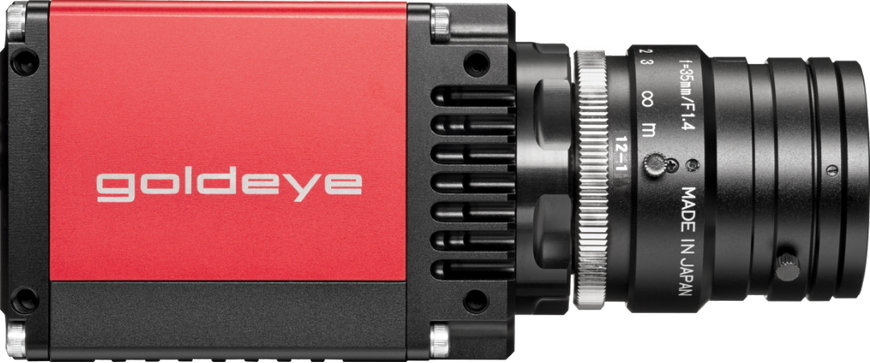

SWIR Camera Allied Vision Goldeye G-008 TEC1 320x256 344fps GigE InGaAs
Downloads:
PDF Instruction 1
The Goldeye G-008 SWIR TEC1 is an affordable, high-speed short-wave infrared camera featuring an advanced InGaAs sensor technology with a resolution of 320 x 256 pixels at an impressive frame rate of 344 frames per second. Operating in the spectral range from 900 nm to 1700 nm, it detects invisible features and material properties with exceptional contrast and resolution.
Equipped with single-stage thermoelectric sensor cooling (TEC1), robust active temperature control, and a high dynamic 14-bit ADC, this camera delivers low-noise imaging even under varying ambient conditions. The GigE Vision interface with Power over Ethernet (PoE) ensures seamless system integration and long-distance data transmission over standard network infrastructure.
Applications
- Semiconductor and wafer inspection
- Solar cell quality control and electroluminescence imaging
- Laser beam profiling and spectral alignment
- Recycling sorting of plastics and organic materials
- Agricultural quality monitoring and moisture detection
- Medical, pharmaceutical, and scientific spectroscopy
Specifications
| Sensor Type | InGaAs Area Scan Progressive Scan |
| Spectral Range | 900 nm to 1700 nm SWIR |
| Resolution | 320 x 256 pixels 0.08 MP |
| Pixel Size | 30.00 um x 30.00 um |
| Sensor Size | 9.6 mm x 7.68 mm Type 1 |
| Shutter Type | Global Shutter |
| Max Frame Rate | 344 fps |
| Bit Depth | 14-bit |
| Thermoelectric Cooling | TEC1 single stage integrated |
| Exposure Time Range | 6 us to 200 ms |
| Gain Control | 0.0 dB to 24.0 dB |
| Digital Interface | IEEE 802.3 1000BASE-T GigE Vision IEEE 802.3af PoE |
| On-board Memory | 256 MB RAM 262 MB Flash |
| I/O Lines | 1 opto-in 2 opto-out 1 LVTTL-in 1 LVTTL-out |
| Power Supply | 10.8 V to 30.0 V DC or PoE |
| Power Consumption | 10.8 W at 12 VDC less than 12.95 W PoE |
| Operating Temperature | -20 C to 55 C housing |
| Dimensions L x W x H | 78 mm x 55 mm x 55 mm |
| Weight | 340 g |
Package Contents
- Allied Vision Goldeye G-008 SWIR TEC1 camera body
- Protective lens mount cap
- Factory test report and calibration documents
- Quick installation and safety guide
