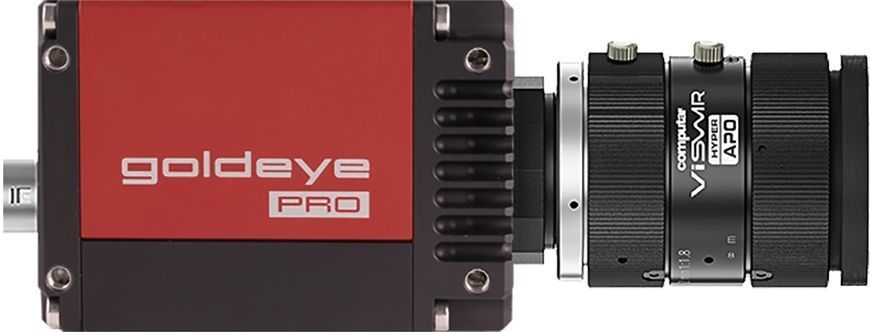

Goldeye Pro G5-130 VSWIR TEC1 Industrial Camera
Downloads:
PDF Instruction 1
The Goldeye Pro G5-130 VSWIR TEC1 is a state-of-the-art short-wave infrared camera built for demanding high-speed industrial imaging. Equipped with the advanced Sony IMX990 SenSWIR InGaAs sensor, this camera covers an extended spectral range from 400 nm to 1700 nm, allowing seamless imaging across visible and VSWIR spectrums with exceptional image uniformity and precision.
Featuring a high-performance 5GBASE-T NBASE-T interface with Power over Ethernet (PoE) capability, the camera delivers raw 1.3 Megapixel resolution at up to 125 frames per second. Integrated active single-stage thermoelectric cooling (TEC1) ensures minimal dark current and stable image quality even under changing environmental temperatures.
With advanced onboard FPGA image pre-processing features and a massive 256 MB RAM frame buffer, the Goldeye Pro G5-130 TEC1 is designed to handle demanding high-throughput factory automation and quality inspection tasks reliably.
Application Scope
- Semiconductor and wafer inspection through silicon
- Solar cell efficiency testing and microcrack analysis
- Agricultural produce sorting and moisture distribution detection
- Recycling sorting of plastics and organic raw materials
- Laser beam profiling and high-temperature thermal imaging
- Defense and surveillance optical spectrum diagnostics
Technical Specifications
| Sensor Model | Sony IMX990 SenSWIR InGaAs (CMOS) |
| Spectral Range | 400 nm to 1700 nm (VSWIR) |
| Resolution | 1296 x 1032 pixels (1.30 MP) |
| Pixel Size | 5.00 µm x 5.00 µm |
| Sensor Size | 6.4 mm x 5.1 mm (Type 1/2) |
| Shutter Type | Global Shutter |
| Max Frame Rate | 125 fps |
| Sensor Bit Depth | 8-bit, 10-bit, 12-bit |
| Digital Interface | IEEE 802.3 5GBASE-T, 2.5GBASE-T, 1000BASE-T (PoE IEEE 802.3af Class 0) |
| Sensor Cooling | TEC1 (Single-stage thermoelectric cooling) |
| Exposure Time Range | 21 µs to 114 s |
| Gain Control | 0.0 dB to 42.0 dB |
| On-board Memory | 256 MByte RAM image buffer, 4 KByte Flash |
| I/O Ports | 4 bidirectional non-isolated, 1 opto-input, 3 opto-outputs |
| Power Requirements | 12 to 24 VDC or PoE |
| Power Consumption | Max 10 W (DC), Max 11 W (PoE) |
| Operating Temperature | 0 °C to 55 °C housing temperature |
| Dimensions (L x W x H) | 78 mm x 55 mm x 55 mm |
| Weight | 350 g |
Package Contents
- Goldeye Pro G5-130 VSWIR TEC1 Camera Unit
- Mounting and Safety Documentation
