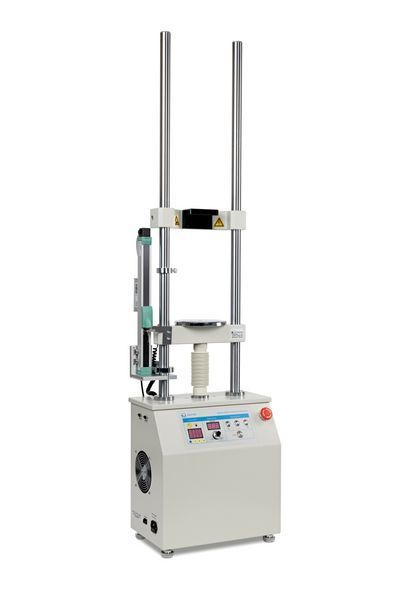

Test Stand Set incl. Length Measuring System SAUTER TVS 5000N240-LD

Practical set for force-displacement-measurements in laboratory and industry

• Five in one – premium motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting
• With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 210 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed
• Motorised test stand for tension/compression force measurements
• Stepper motor for greatest ease of use
  - for constant speed from the smallest to the maximum load
  - allows testing at minimum speed and full load
  - for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds
  - precise adjustment of the displacement speed using the information shown on the display
• Maximum displacement protected by electronic end switches
• Large working area by means of long guide columns as standard, which allows a wide range of fixing options
• Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL:

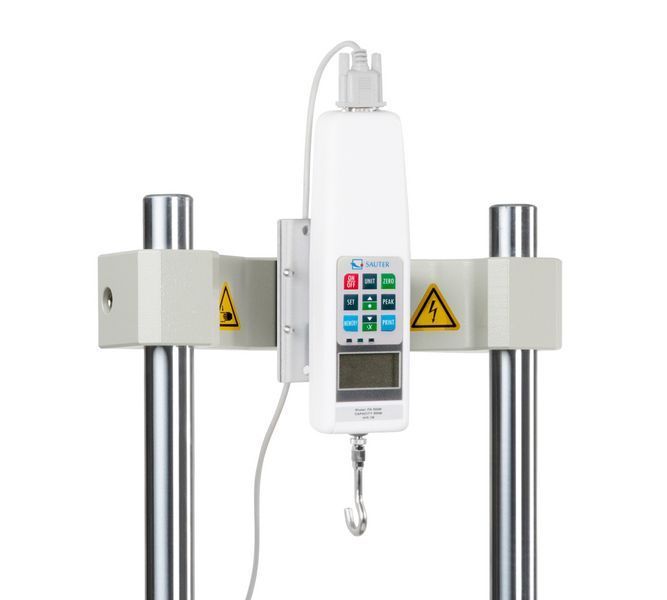

  - Direct mounting of measuring devices with internal load cell up to a measuring range of 500 N

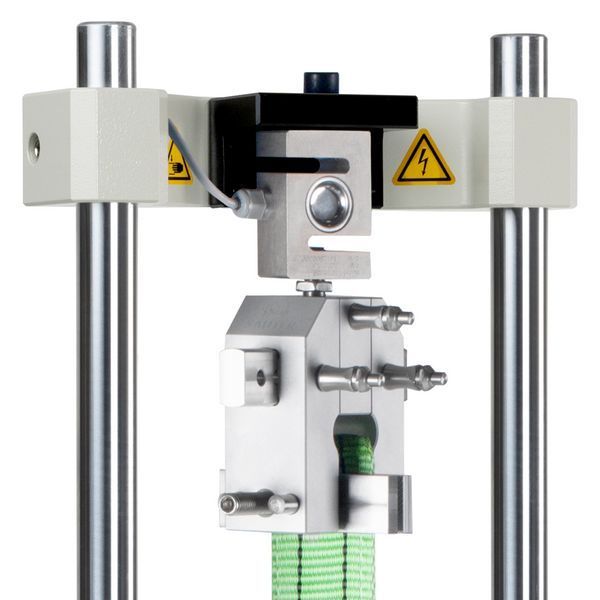

  - Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

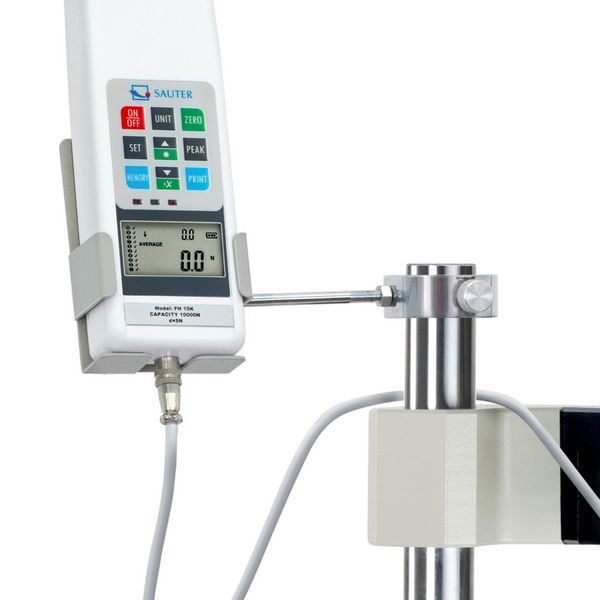

  - Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

• Industry (plastic, automotive, medical, metal)
• Laboratory applications
• Quality control in series
• Teaching and training
• Packaging industry

Article number for DAkkS calibration: 962-400-400
Weight OIML class: F1
Test weight - nominal value: 10 g & 200 g
Article number aluminium case: zet315-000-000
Number of weights: 2
Case of weight set: in aluminium case
Gross weight: 1,00 kg
Net weight: 0,50 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 150×115×70 mm
Dimensions packaging Width: 150 mm
Dimensions packaging Depth: 115 mm
Dimensions packaging Height: 70 mm
Total packaging weight: 500 g
Packaging component plastic: 500 g
Pictograms Standard: Package shipment 1 day
Accessories: zet315-000-000; 962-400-600; 962-600-600
