Datasheet | Instruction Manual
Description

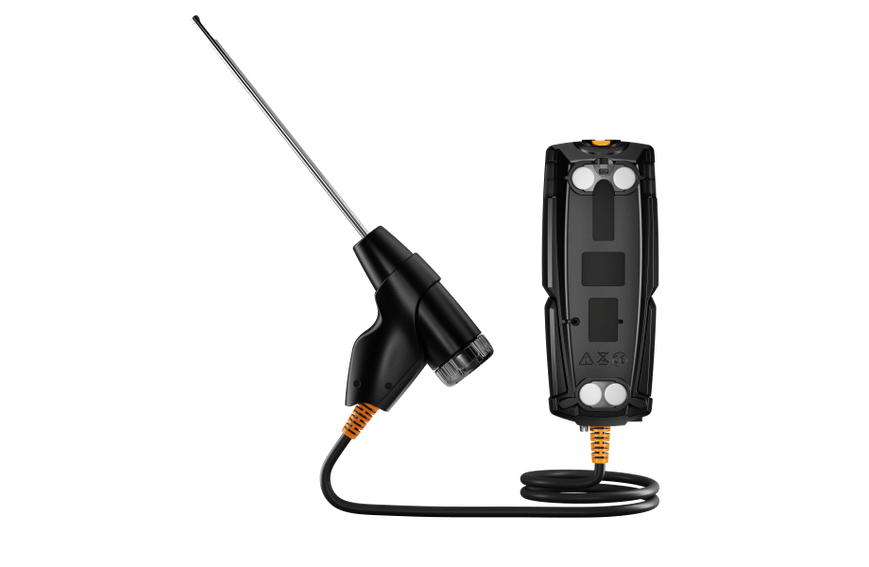

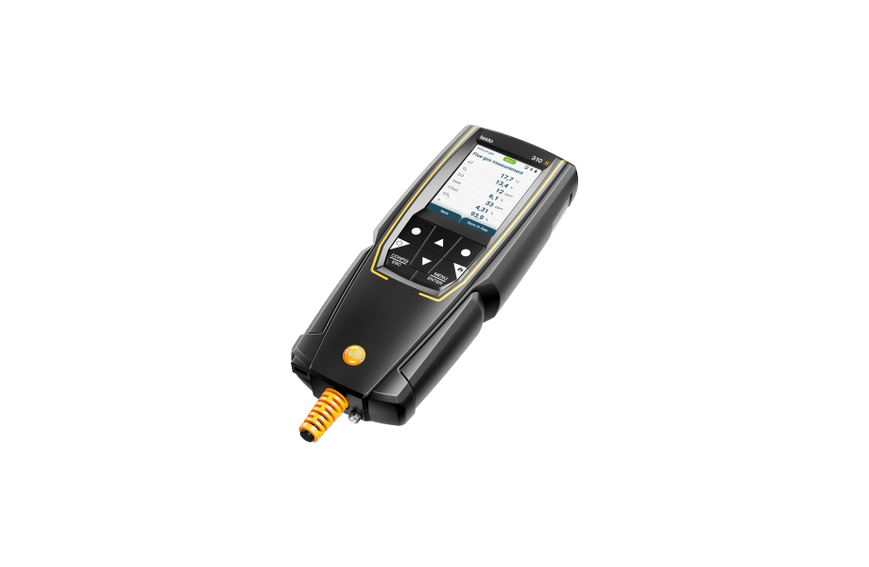

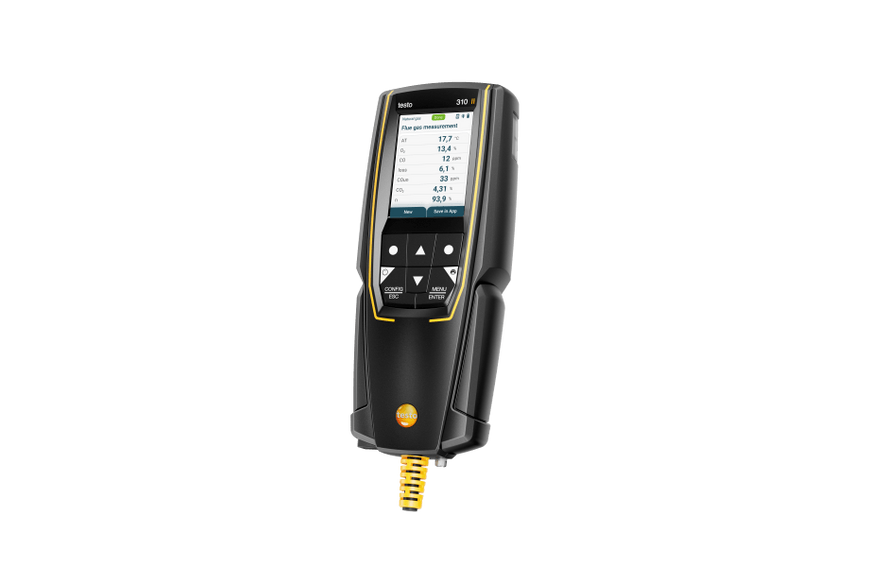

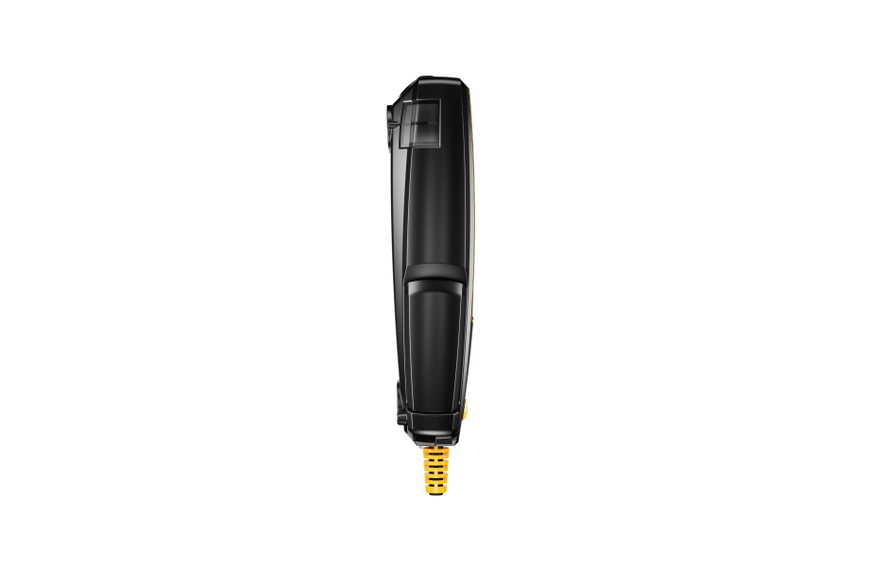

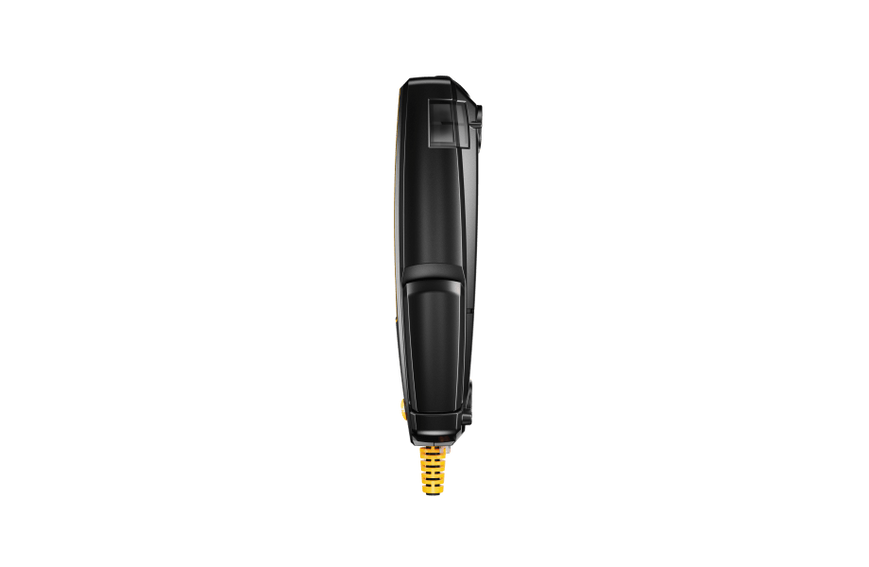

The compact testo 310 II flue gas analyzer is engineered specifically for the commissioning, auditing, and maintenance of hot water and residential heating systems. Featuring a high-resolution 7-line graphic display, the instrument houses two pre-calibrated measuring cells for O2 and CO, alongside a temperature sensor embedded within the modular probe. It features fast sensor zeroing in 30 seconds, an integrated condensate trap, and back-mounted magnets for hands-free operation on metallic surfaces. Through the testo Smart App, technicians can configure the multi-parameter display, perform parallel calculations (CO2, flue gas loss, efficiency Eta), and transmit data via Bluetooth for digital documentation and customer record management.
Industrial Applications
- Residential heating maintenance: Rapid on-site calculation of burner efficiency (Eta), flue gas loss, and direct verification of technical environmental parameters.
- Draft and pipeline tracking: High-precision piezoresistive differential pressure testing to cross-check boiler draught safety and line stability.
- Ambient air safety testing: Continuous identification of ambient CO exposure thresholds within residential boiler installations during technical inspections.
Technical Specifications
| Flue Gas O2 Range | 0 to 21 Vol.% (Accuracy: +-0.2 Vol.%) |
| Flue Gas CO Range | 0 to 4000 ppm (Accuracy: +-5% of mv 401-2000 ppm) |
| Temperature Range | -20 to +400 °C (Accuracy: +-1 °C from -20 to +100 °C) |
| Draught Pressure | -20 to +20 hPa |
| Display / Zeroing | 7-line graphic display / 30-second automatic zeroing sequence |
| Data Connectivity | Bluetooth interface, connection to testo Smart App |
| Power Supply | Rechargeable battery (1500 mAh), 5V/1A mains unit |
| Enclosure Weight | Approx. 660 g (probe included) |

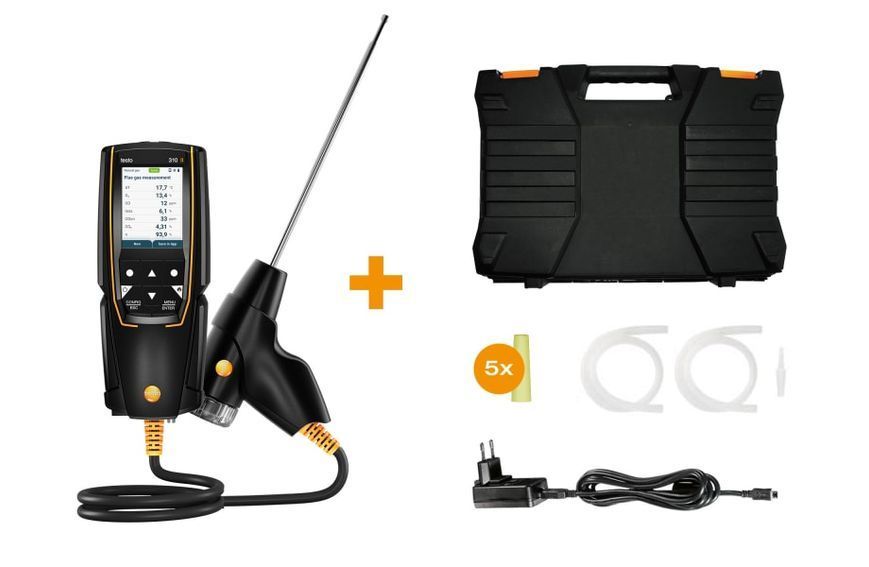

Package Contents
- testo 310 II flue gas analyzer with O2 and CO sensors
- Flue gas probe with integrated temperature sensor
- Mains power supply unit
- Replacement probe filters
- System documentation
