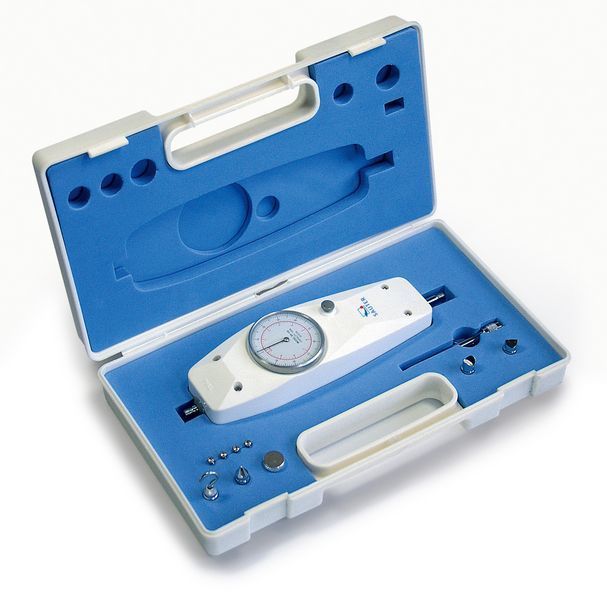

- For testing the stability of tombstones in accordance with VSG 4.7

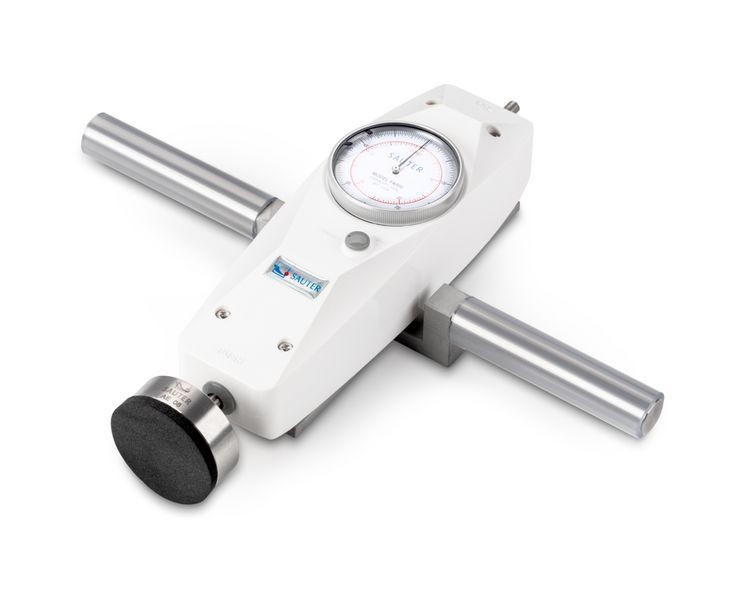

- Pressure disc with foam rubber attachment
- Stainless steel handle with rubber covering for secure handling
- No electrical power supply required due to mechanical measuring system
- Real time or peak hold switch to observe transients or capture peaks by a drag indicator
- For tensile force and compressive force measurements
- Scope of delivery:
- 1× FA 500
- 1× AE 08
- 1× AFH 04
- Cemetery administration
- Technical test centres and experts
- Stone-cutter companies
- Landscaping and horticulture
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for conformity assessment: 965-129
Article number for DAkkS calibration: 963-129
Material housing: ABS plastic
Dimension completely mounted (W×D×H): 647×860×910 mm
Dimension completely mounted (Width): 647 mm
Dimension completely mounted (Depth): 860 mm
Dimension completely mounted (Height): 910 mm
Material weighing plate: plastic
Dimension weighing platform (W×D×H): 465×530×410 mm
Dimension weighing platform (Width): 465 mm
Dimension weighing platform (Depth): 530 mm
Dimension weighing platform (Height): 410 mm
Dimensions weighing surface (W×D): 380×360 mm
Dimension weighing surface (Width): 380 mm
Dimension weighing surface (Depth): 360 mm
Display type: LCD
Display digit height: 25 mm
Units: kg
Supplied power supply: Power supply & battery function (battery not included)
Battery / accumulator type: Alkali(-Manganese),Li-Ion
Rechargeable battery optional: Rchrg. battery optional
Rechargeable battery charging time: 8 h
Auto-off interval(s) in battery mode/rechargeable battery mode: off,selectable,30 s, 1 min, 2 min, 5 min, 30 min, 60 min
Battery: 6×1.5 V AA
Battery operating time: 20 h
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK
Plug-in power supply / adapter for countries - option: EURO,UK
Plug-in power supply type: Power adapter
Interfaces: RS-232 (optional),Bluetooth (optional),WiFi,Alibi memory (optional, factory),USB-Device (optional),KUP
Humity of environment [Min]: 5 %
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): 10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 38 kg
Net weight: 22 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Freight
Dimensions packaging (W×D×H): 914×690×1050 mm
Dimensions packaging Width: 914 mm
Dimensions packaging Depth: 690 mm
Dimensions packaging Height: 1050 mm
Total packaging weight: 16,4 kg
Packaging component carton/cardboard: 16050 g
Packaging component plastic: 300 g
Packaging component wood: 8,9 kg
Cable length: 1,8 m
Pictograms Standard: KERN IoT-ready; Data interface KERN Universal Port (KUP); Data Interface WiFi; GLP/ISO Protocol; Value & time; Interface command set KERN Communication Protocol (KCP); Hold function; Prepared for battery operation; Universal plug-in power supply; Delivery Truck 2 days
Pictograms Option: EasyTouch compatible; Data interface RS-232; Data Interface USB; Data Interface Bluetooth; Rechargeable battery
Pictograms Factory: Alibi memory; Conformity assessment
Accessories: MYC-01; YKG-01; YKH-01; KUP-01; KUP-03; KUP-04; KUP-06; KUP-13; YMR-01; YKC-01; RMCCN-5001; YKA-51
