Datasheet Testo 410-2 (EN) | Instruction Manual Testo 410-2 (EN)

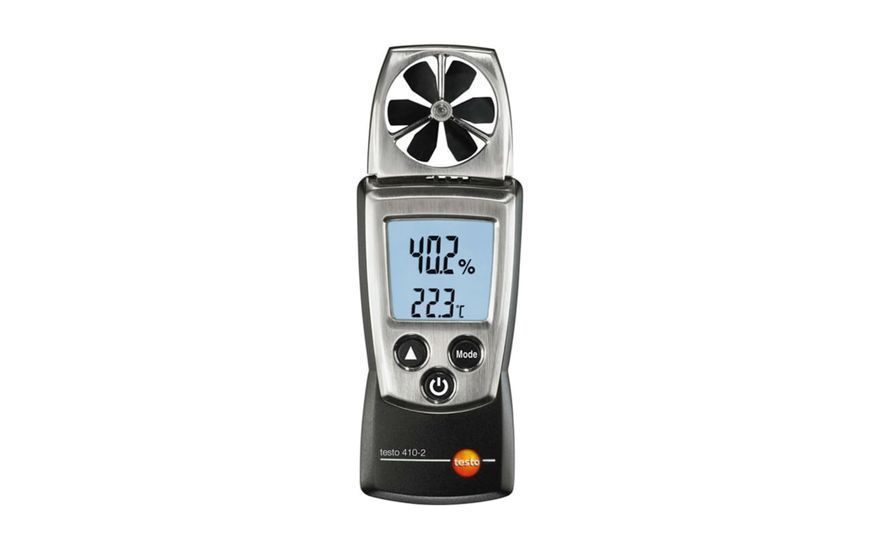

The compact vane anemometer Testo 410-2 is designed for rapid and accurate spot measurements of air velocity, air temperature, and relative humidity directly at ventilation grilles and air outlets. Featuring an integrated 30 mm vane, a long-term stable Testo humidity sensor, and an NTC sensor, it automatically calculates dew point, wet bulb temperature, wind chill, and Beaufort wind force at the touch of a button.
B2B Industrial Applications
- Ventilation Grille Testing: Measuring airflow velocity and volumetric discharge directly at supply and exhaust grilles.
- Indoor Air Quality Inspections: Monitoring combined ambient temperature and humidity levels to evaluate HVAC system performance.
- Outdoor Climate Assessment: Quick environmental screening for industrial facility maintenance and occupational safety verification.
Technical Specifications
| Velocity Measuring Range | 0.4 to 20 m/s |
| Velocity Accuracy | +-(0.2 m/s + 2 % of mv) |
| Velocity Resolution | 0.1 m/s |
| Temperature Measuring Range (NTC) | -10 to +50 deg C |
| Temperature Accuracy / Resolution | +-0.5 deg C / 0.1 deg C |
| Humidity Measuring Range | 0 to 100 %RH |
| Humidity Accuracy / Resolution | +-2.5 %RH (5 to 95 %RH) / 0.1 %RH |
| Vane Diameter | 30 mm |
| Protection Class | IP10 |
| Battery Type / Life | 2x AAA micro / 60 h (without illumination) |
| Dimensions | 133 x 46 x 25 mm (including protective cap) |
Package Contents
- Testo 410-2 vane anemometer with integrated 30 mm vane
- Clip-on protective cap
- Wrist strap
- Calibration protocol
- 2x AAA batteries
