Vibration, humidity and temperature data logger Testo 184 G1 for transport monitoring

Available for Pre-order
Item: 0572 1846
€303/exl. VAT
€319/exl. VAT
Log in to the site to
add the item to your wish list
%
Login to display the cumulative discount
exl. VAT
Quick order
Description

Datasheet PDF | Instruction Manual PDF

Description

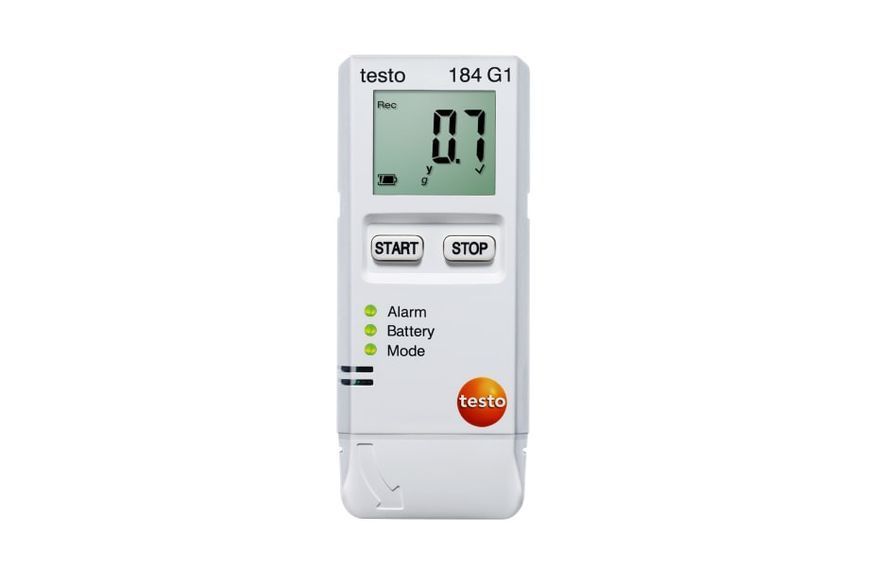

The premium Testo 184 G1 vibration, humidity, and temperature data logger is a multi-parameter flagship solution engineered for the ultimate security in transport monitoring of fragile or highly environmental-sensitive items. Operating over an unlimited operating time across individual transit assignments, it monitors combined metrics for high-tech electronics, valuable fine art, pharmaceuticals, and fresh foods. Running via intuitive start and stop buttons, it yields a local segment LCD and clear alarm LEDs to highlight critical profile boundary violations immediately upon arrival. Plugging the logger directly into a PC USB slot outputs an automated, secure PDF report containing integrated data tables and configuration parameters natively held inside.

Industry Applications

  • Fragile Electronics & Heavy Equipment Logistics: Continuous recording of 3-axis mechanical shock loads alongside ambient climate to verify careful freight handling.
  • Fine Art & Antique Transport: Tracing delicate environmental parameters and vibration events to guarantee structural preservation of museum assets.
  • Pharmaceutical Cold Chain: Executing comprehensive shipping auditing fully compliant with GxP and 21 CFR Part 11 regulatory rules.

Technical Parameters

  • Shock Sensor Measuring Range: 0 to 27 g (0 to 265 m/s2)
  • Shock Accuracy & Resolution: +-(0.1 g + 5% of mv); 0.1 g / 1 m/s2
  • Temperature Sensor Type: NTC
  • Temperature Measuring Range: -20 to +70 C
  • Temperature Accuracy: +-0.5 C (0 to +70 C), +-0.8 C (-20 to 0 C)
  • Humidity Measuring Range (Capacitive): 0 to 100 %RH
  • Humidity Accuracy: +-1.8 %RH + 3% of mv (at 25 C, 5% to 80 %RH)
  • Memory Capacity: 64000 entries (Temp/Humidity); 1000 entries (Shock)
  • Measuring Sampling Rate: 1 min to 24 h (Shock frequency: 1 s)
  • Protection Rating Class: IP30
  • Data Interfaces: Standard USB (automatic PDF export) and NFC (wireless layout printing)
  • Battery Life: 120 days at +25 C and 15 min cycle (Replaceable CR2450 battery, 3V)

Package Content

  • Testo 184 G1 multi-parameter data logger
  • Embedded configuration file and internal instruction manual
  • Lithium battery CR2450
