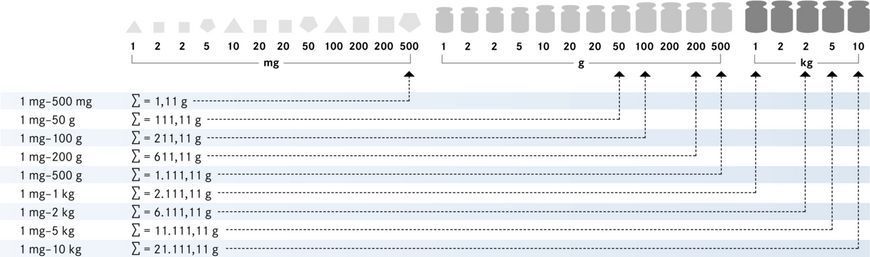

- The milligram weights contained in this weight set (denomination 1 mg - 500 mg) are in a separate plastic case
Weighing system: Strain gauge
Stabilization time: 3 s
Article number for conformity assessment: 965-128.
Article number for DAkkS calibration: 963-128
Material housing: plastic
Dimension housing (W×D×H): 320×410×70 mm
Dimension housing (Width): 320 mm
Dimension housing (Depth): 410 mm
Dimension housing (Height): 70 mm
Dimension completely mounted (W×D×H): 600×410×112 mm
Dimension completely mounted (Width): 600 mm
Dimension completely mounted (Depth): 410 mm
Dimension completely mounted (Height): 112 mm
Material weighing plate: plastic
Dimension weighing platform (W×D×H): 600×280×55 mm
Dimension weighing platform (Width): 600 mm
Dimension weighing platform (Depth): 280 mm
Dimension weighing platform (Height): 55 mm
Dimensions weighing surface (W×D): 600×276 mm
Dimension weighing surface (Width): 600 mm
Dimension weighing surface (Depth): 276 mm
Display type: LCD
Display digit height: 25 mm
Units: kg
Supplied power supply: Power supply & battery function (battery not included)
Battery / accumulator type: Alkali(-Manganese)
Rechargeable battery optional: Rchrg. battery optional - intern
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 20 h
Rechargeable battery operating time - backlight off: 40 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,5 min,30 min,15 min
Battery: 6×1.5 V AA
Battery operating time: 20 h
Input voltage power supply / power [Max]: 100 V - 240 V, 50 / 60 Hz
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 6 kg
Net weight: 4,6 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 480×654×177 mm
Dimensions packaging Width: 480 mm
Dimensions packaging Depth: 654 mm
Dimensions packaging Height: 177 mm
Total packaging weight: 1505 g
Packaging component carton/cardboard: 301 g
Packaging component plastic: 752,5 g
Packaging component Styrofoam: 1204 g
Pictograms Standard: Hold function; Prepared for battery operation; Universal plug-in power supply; Package shipment 1 day
Pictograms Option: Rechargeable battery; Accredited calibration (DKD)
Pictograms Factory: Conformity assessment
Accessories: MBC-A01; MBC-A02; MBC-A05; MBC-A06; MYC-01; MBC-A06S05; MBC-A08; YKA-43; YKA-44; MBC-A08-2024e
Technical Data Sheet (PDF)
