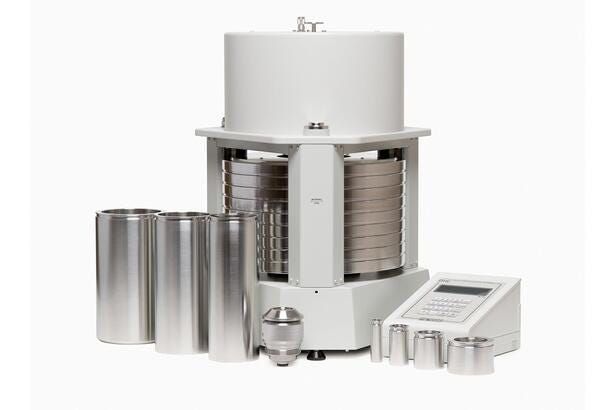

Automated Mass Handler Fluke PG7000-AMH-38-VAC (38 kg under vacuum for PG7601)
Description
The Automated Mass Handler Fluke PG7000-AMH-38-VAC (38 kg under vacuum for PG7601) is designed to fully automate mass manipulation on PG7601 piston gauge platforms. Featuring integrated vacuum chamber technology, the Fluke PG7000-AMH-38-VAC enables precise pressure calibration up to 38 kg without breaking reference vacuum, eliminating manual errors and drastically increasing laboratory calibration efficiency.
Application field
Engineered for primary pressure laboratories, metrology institutes, and high-precision calibration facilities. Typical application scenarios include:
- Automated pressure calibration in absolute mode with continuous vacuum reference
- Unattended calibration routines of pressure transmitters, transducers, and digital gauges
- Primary pressure standard testing in aerospace, defense, and research applications
- Eliminating manual mass placement to improve repeatability and throughput
Specifications
| Parameter | Value |
| Model | AMH-38-VAC |
| Compatible Platform | PG7601 (PG7000 series) |
| Maximum Mass Load | 38 kg |
| Minimum Automated Increment | 100 g (373 increments) |
| Mass Changing Time | < 15 seconds |
| Vacuum Fittings | (2) KF40 for pump and external vacuum gauge |
| Typical Residual Vacuum | < 10 mPa (0.08 mTorr) with 70 l/s turbo pump |
| Mass Uncertainty | ±5 ppm or 1 mg |
| Communications Port | RS-232 (COM1) controlled by PG7000 platform |
| Drive Air Supply | 550 kPa (80 psi) shop air |
| Power Supply | 100 to 240 VAC, 50/60 Hz, 30 W max |
| Dimensions (HxWxD) | 41 cm x 37 cm x 38 cm |
| Weight (Handler Only) | 18 kg |
Package contents
- Automated Mass Handler Fluke PG7000-AMH-38-VAC

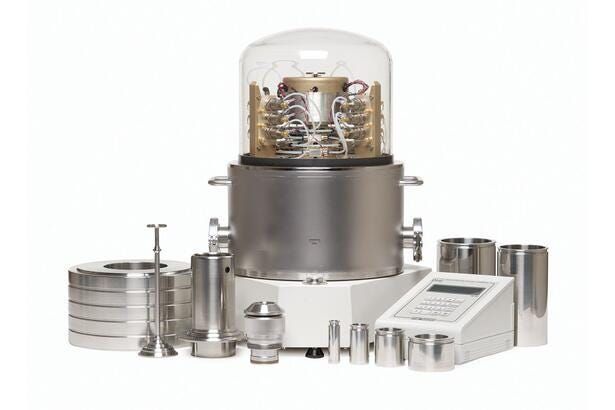

- Integrated vacuum chamber with KF40 fittings
- MS-AMH-38 mass set assembly
- User manual
