Versatile Digital Multimeter for Electrical and HVAC Diagnostics

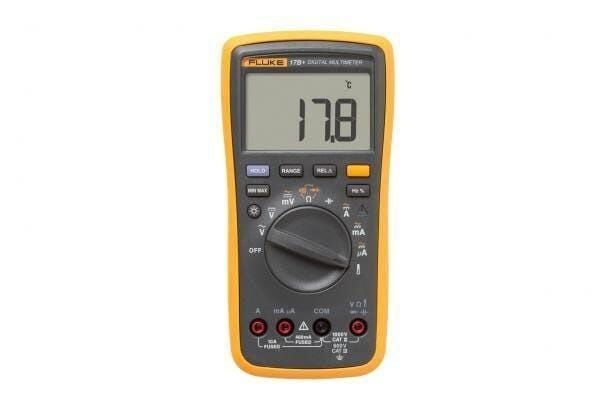

The Fluke 17B+ Digital Multimeter extends standard troubleshooting features with frequency, duty cycle, and temperature measurement functions. Equipped with a K-type thermocouple, rugged housing, and a backlit display, this industrial-grade tool is optimized for electrical system diagnostics, HVAC maintenance, and automation controls.
Industrial Use Cases
- HVAC Systems Maintenance: Measuring line temperatures, heat exchanger performance, and electrical parameters using the included K-type thermocouple.
- Power Distribution Checks: Testing AC/DC voltage up to 1000 V, current up to 10 A, and monitoring voltage drop via relative mode.
- Frequency and Signal Analysis: Evaluating duty cycle and frequency up to 100 kHz on drive outputs and control electronics.
Key Specifications
| Parameter | Range / Detail |
|---|---|
| DC Voltage | Up to 1000 V (Accuracy: 0.5% + 3) |
| AC Voltage | Up to 1000 V (Accuracy: 1.0% + 3) |
| AC/DC Current | Up to 10 A (Accuracy: 1.5% + 3) |
| Temperature | -55 °C to 400 °C |
| Frequency | 10.00 Hz to 100.0 kHz |
| Capacitance | Up to 1000 μF |
| Safety Rating | CAT III 600 V / CAT II 1000 V |

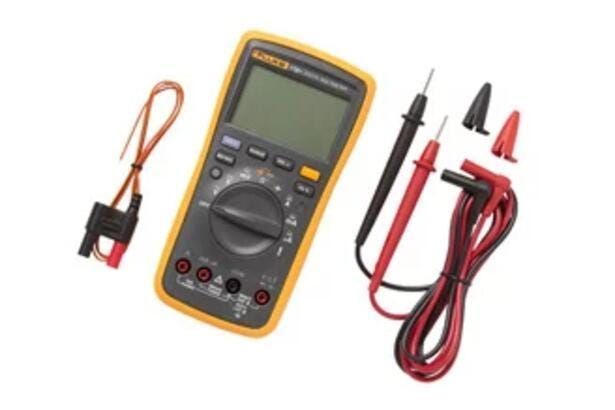

Package Contents
- Fluke 17B+ Digital Multimeter
- Test leads with protective caps
- K-type thermocouple probe
- 2 AA Alkaline batteries
- User manual
