Dual-Well Dry-Well Calibrator Fluke Calibration 9009-B-156 -15 C to 350 C
Description

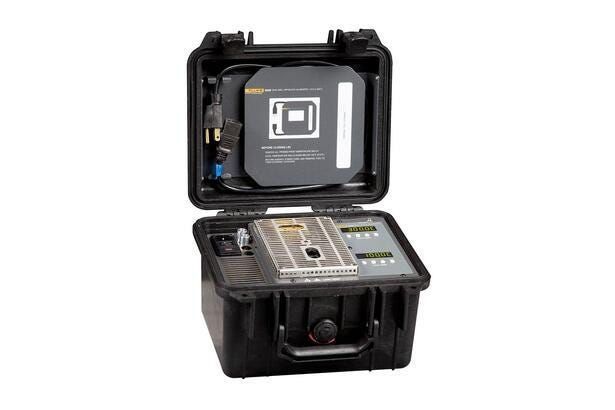

The Dual-Well Dry-Well Calibrator Fluke Calibration 9009-B-156 -15 C to 350 C is a portable thermal calibration standard designed for field and laboratory testing. The Fluke Calibration 9009-B-156 features two independently controlled temperature blocks in a single rugged Pelican case, combining a hot block (50 °C to 350 °C) and a cold block (-15 °C to 110 °C) with temperature stability of ±0.05 °C for efficient multi-probe calibration.
Application field
Designed for field maintenance and temperature sensor calibration across various process industries.
- Simultaneous zero and span verification of temperature transmitters
- Calibration of RTDs, thermocouples, and thermistors using dual temperature zones
- On-site testing in industrial manufacturing plants and metrology laboratories
Specifications
| Hot Block Temperature Range | 50 °C to 350 °C (122 °F to 662 °F) |
| Cold Block Temperature Range | -15 °C to 110 °C (5 °F to 230 °F) |
| Cold Block Display Accuracy | ±0.2 °C |
| Hot Block Display Accuracy | ±0.6 °C |
| Stability | ±0.05 °C |
| Well-to-Well Uniformity | ±0.1 °C |
| Well Depth | 102 mm (4 in) |
| Display Resolution | 0.1 ° |
| Computer Interface | RS-232 included |
| Dimensions & Weight | 178 x 267 x 248 mm, 4.5 kg |
Equipment
- Dual-well dry-well calibrator Fluke Calibration 9009-B-156
- Two 6.4 mm (1/4 in) removable inserts
- Two 4.8 mm (3/16 in) removable inserts
- Pelican carrying case and power cord
- NIST-traceable calibration certificate
