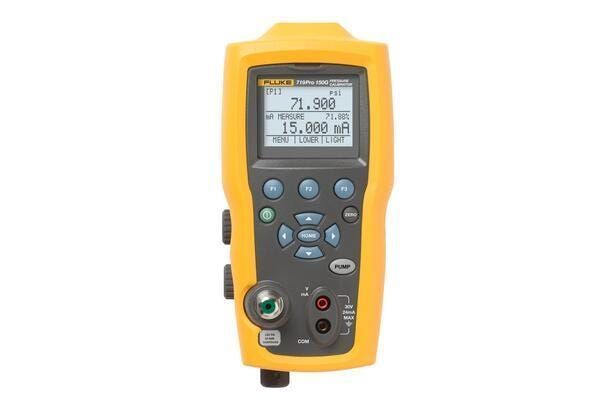

Electric Pressure Calibrator Fluke 719Pro 30G 30 psi 2 bar
Description
The Electric Pressure Calibrator Fluke 719Pro 30G 30 psi 2 bar is an advanced field tool for testing precision process instrumentation. Featuring a unique integrated electric pump for single-handed pressure generation up to 2 bar (30 psi), the Electric Pressure Calibrator Fluke 719Pro 30G 30 psi 2 bar provides high accuracy calibration, mA sourcing, and temperature measurement capabilities.
Application Scope
Designed for process technicians, instrumentation engineers, and calibration laboratory personnel across industrial plants.

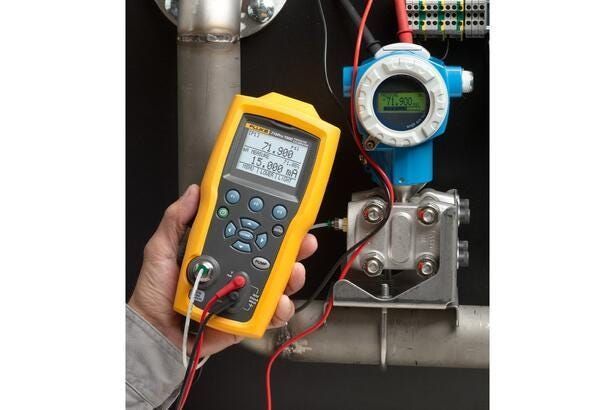

- One-handed testing and calibration of pressure transmitters, switches, and gauges
- Simultaneous loop power supply and 4-20 mA signal measurement
- Precision temperature measurement using optional RTD probes
Specifications
| Pressure Measurement Range | -12 to 30 psi (-0.8 to 2 bar) |
| Pressure Resolution | 0.001 psi / 0.0001 bar |
| Pressure Accuracy | ±0.025% of full scale (6 months), ±0.035% of full scale (1 year) |
| DC Current Measurement / Source / Simulation | 0 to 24 mA DC (0.001 mA resolution, ±0.015% rdg ±2 counts) |
| DC Voltage Measurement | 0 to 30 V DC (0.001 V resolution, ±0.015% rdg ±2 counts) |
| Temperature Measurement (Pt100 RTD) | -50°C to 150°C (0.01°C resolution) |
| Loop Power Supply | 24 V DC (24 mA at 24 V) |
| Pressure Connection | 1/8 inch female NPT |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 24.13 x 11.18 x 7 cm |
| Weight | 1.2 kg (with holster) |
| Battery Type | Eight standard Alkaline AA batteries |
Scope of Delivery
- Electric Pressure Calibrator Fluke 719Pro 30G 30 psi 2 bar
- Protective holster
- Eight AA alkaline batteries
- Test lead set with alligator clips
- Fluid trap to prevent moisture damage
