Compact Electrical Voltage, Current and Continuity Tester

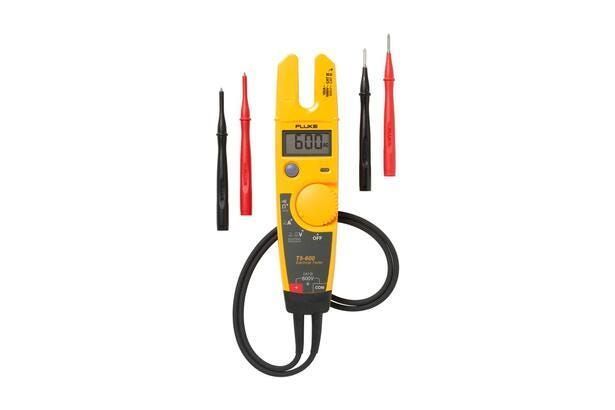

The Fluke T5-600 Electrical Tester is a compact diagnostic tool engineered for commercial, residential, and light industrial electricians. Utilizing OpenJaw technology, the instrument measures AC current up to 100 A without breaking the electric circuit. The meter automatically switches between AC and DC voltage measurements up to 600 V, providing efficient testing for resistance and continuity under strict CAT III 600 V safety parameters.
Industrial Use Cases
- Branch Circuit Load Checks: Measuring operational current on conductors up to 12.9 mm in diameter without physical galvanic contact.
- HVAC and Control Circuit Troubleshooting: Evaluating resistance up to 1000 ohm and detecting circuit breaks via the integrated audible continuity beeper.
- Commercial Panel Diagnostics: Testing AC and DC line voltages up to 600 V in tight junction boxes using detachable SlimReach probe tips.
Key Specifications
| Parameter | Value |
|---|---|
| AC/DC Voltage Range | 0 V to 600 V (Auto-selection, AC Accuracy: 1.5% + 2, DC Accuracy: 1.0% + 1) |
| AC Current Range | 0 A to 100.0 A AC rms (OpenJaw, 50/60 Hz, Accuracy: 3.0% + 3) |
| Resistance Range | 0 ohm to 1000 ohm (Accuracy: 1.0% + 2) |
| Continuity Beeper Threshold | On at < 25 ohm, off at > 400 ohm |
| Jaw Opening / Max Wire Size | 12.9 mm (0.5 in) / 1/0 THHN cable |
| Safety Rating & Drop Protection | CAT III 600 V, 3 m (10 ft) drop proof |
Package Contents
- Fluke T5-600 Electrical Tester
- Detachable 4 mm SlimReach Probes
- Installed AA Batteries
- Quick Reference Guide
