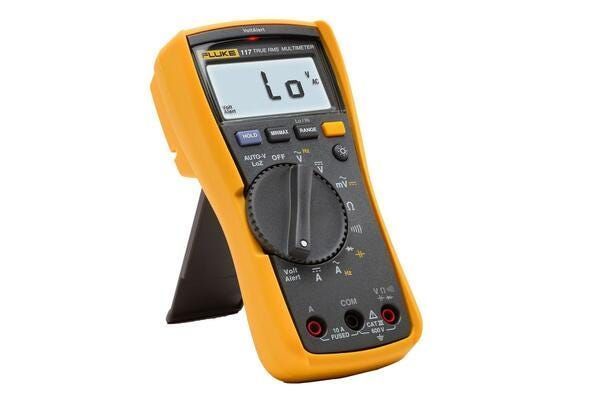

Compact True-RMS Multimeter with Non-Contact Voltage Detection
The Fluke 117 Digital Multimeter is designed specifically for commercial electricians and technicians working in demanding environments such as commercial buildings, hospitals, and schools. Featuring integrated VoltAlert non-contact voltage detection technology, AutoVolt automatic AC/DC voltage selection, and LoZ low input impedance to prevent false readings caused by ghost voltage, this compact True-RMS meter provides high precision and operational safety under CAT III 600 V standards.
Industrial Use Cases

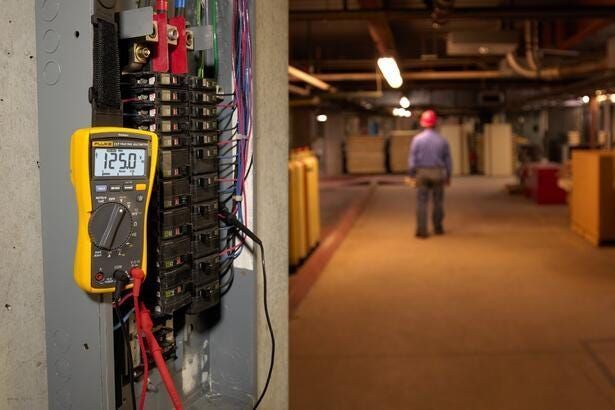

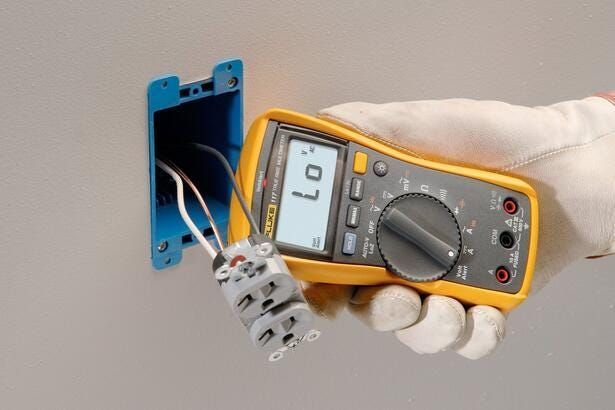

- Commercial Electrical Installation: Fast and safe non-contact voltage checks on wiring panels, outlets, and switches using VoltAlert technology.
- Ghost Voltage Elimination: Preventing false voltage readings on de-energized circuits with LoZ low input impedance mode.
- HVAC and Automation Diagnostics: Measuring signal frequency, capacitance, resistance, and continuous current draw up to 10 A (20 A overload for 30 seconds).
Key Specifications
| Parameter | Range / Detail |
|---|---|
| DC Voltage | Up to 600.0 V (Accuracy: 0.5% + 2) |
| AC Voltage (True-RMS) | Up to 600.0 V (Accuracy: 1.0% + 3) |
| AC/DC Current | Up to 10.00 A (20 A overload for 30 s max) |
| Resistance | Up to 40.00 MΩ |
| Capacitance | Up to 9999 μF |
| Safety Rating | CAT III 600 V |
| Display Counts | 6000 counts with white LED backlight |

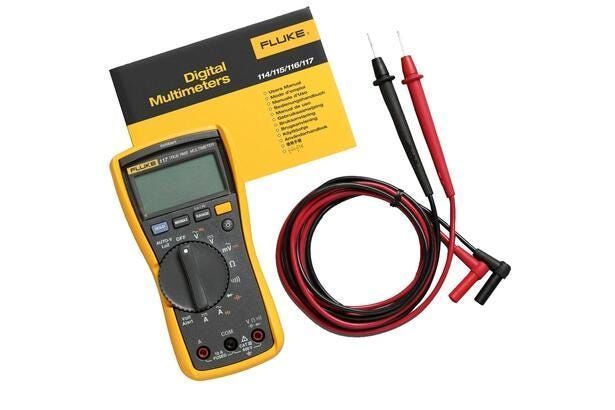

Package Contents
- Fluke 117 Electricians Digital Multimeter
- 4 mm silicone test lead set
- Protective holster with probe holders
- Installed 9 V Alkaline battery
- User manual
