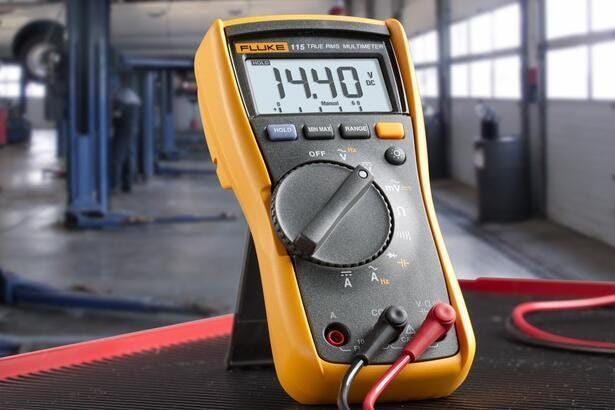

Compact True-RMS Multimeter for Field Service Technicians
The Fluke 115 Digital Multimeter is optimized for field service technicians performing general electrical and electronic troubleshooting. Offering True-RMS accuracy, 6000 count display resolution, and ergonomic one-handed operation, this compact meter provides rapid verifications in industrial, commercial, and field environments under CAT III 600 V safety standards.
Industrial Use Cases
- Field Service Equipment Verification: Rapid testing of AC/DC voltage, signal frequency, and circuit continuity on remote industrial machinery.
- Electronic Repair and Diagnostics: Checking capacitance, diode drops, and low resistance parameters across control boards and power supplies.
- Signal Fluctuation Recording: Monitoring circuit stability over time using Min/Max/Average mode with elapsed time tracking.
Key Specifications
| Parameter | Range / Detail |
|---|---|
| DC Voltage | Up to 600.0 V (Accuracy: 0.5% + 2) |
| AC Voltage (True-RMS) | Up to 600.0 V (Accuracy: 1.0% + 3) |
| AC/DC Current | Up to 10.00 A (20 A overload for 30 s max) |
| Resistance | Up to 40.00 MΩ |
| Capacitance | Up to 9999 μF |
| Frequency | Up to 50 kHz |
| Safety Rating | CAT III 600 V |
Package Contents
- Fluke 115 Digital Multimeter
- 4 mm silicone test lead set
- Protective holster with probe holders
- Installed 9 V Alkaline battery
- User manual
