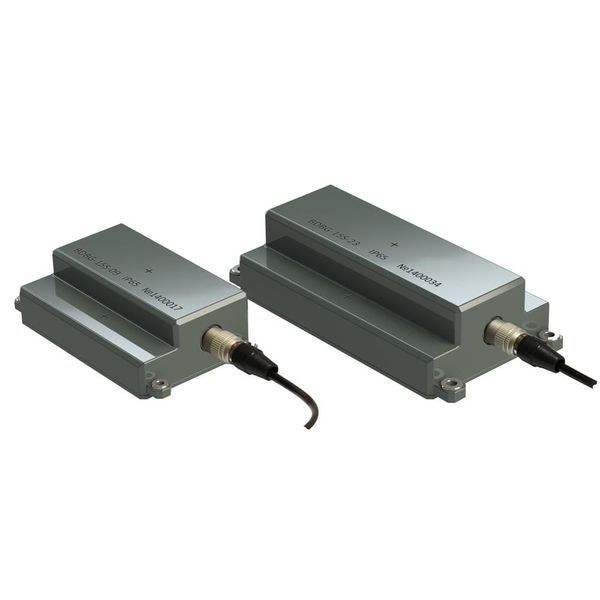

Gamma Radiation Detecting Unit Ecotest BDBG-15S
Downloads:
PDF Instruction 1
The intelligent gamma radiation detecting unit BDBG-15S is specifically designed for integration into unmanned aerial vehicles (UAVs), mobile robotic systems, and automated radiation monitoring stations. The device provides ultra-precise dose equivalent rate (DER) measurement across a wide dynamic range and enables 1024-channel amplitude spectrum acquisition.
Featuring a hybrid detection system, the unit combines a high-sensitivity CsI(Tl) scintillation detector with a photomultiplier tube and an energy-compensated Geiger-Muller counter. This architecture ensures rapid response to radiation field changes and superior mechanical durability without microphonic effects.
Scope of Application
- Equipment for radiation reconnaissance UAVs and drones
- Mobile robotic platforms for hazardous area inspection
- Automated environmental radiation monitoring systems
- Nuclear power plants and industrial site safety monitoring
- Emergency response and ecological hazard mapping
Specifications
| Parameter | BDBG-15S-09 | BDBG-15S-23 | BDBG-15S-90 |
| DER measurement range | 0.01 - 10^6 uSv/h | 0.01 - 10^6 uSv/h | 0.01 - 150 uSv/h |
| Scintillator channel range | 0.01 - 50 uSv/h | 0.01 - 50 uSv/h | 0.01 - 150 uSv/h |
| Geiger-Muller counter range | 50 - 10^6 uSv/h | 50 - 10^6 uSv/h | N/A |
| CsI(Tl) scintillator volume | 9 cm3 | 23 cm3 | 90 cm3 |
| Sensitivity to 137Cs | 200 cps/uSv/h | 480 cps/uSv/h | 1500 cps/uSv/h |
| Energy range | 0.05 - 3 MeV | 0.05 - 3 MeV | 0.05 - 3 MeV |
| Basic relative error | max 15% | max 15% | max 15% |
| Digital interface | RS-485 / UART | RS-485 / UART | RS-485 |
| Supply voltage | 7 - 32 V | 7 - 32 V | 7 - 32 V |
| Current consumption | max 30 mA | max 30 mA | max 30 mA |
| Dimensions | 103 x 57 x 29 mm | 140 x 70 x 38 mm | 140 x 80 x 50 mm |
| Weight | 0.25 kg | 0.42 kg | 0.76 kg |
Package Contents
- BDBG-15S gamma radiation detecting unit (selected version)
- Connector socket with sleeve for connecting cable
- Operating manual
- Original packaging
