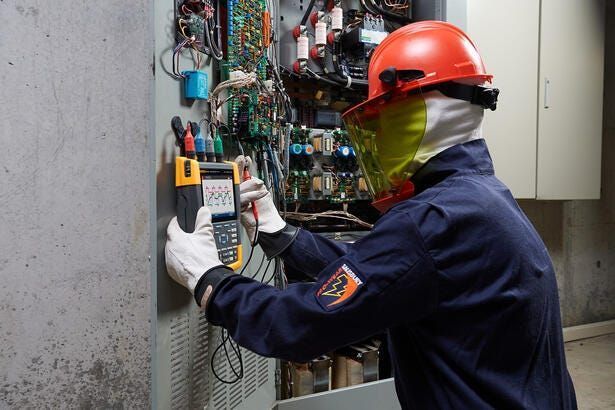

Handheld Industrial Oscilloscope Fluke 190 Series III ScopeMeter
Description
The Handheld Industrial Oscilloscope Fluke 190 Series III ScopeMeter is a high-performance portable test tool designed for harsh industrial environments with CAT III 1000 V / CAT IV 600 V safety ratings. Combining the power of a benchtop instrument with rugged portability, the Fluke 190 Series III features up to 4 isolated channels, up to 5 GS/s sampling rate, Connect-and-View automatic triggering, and ScopeRecord mode for deep signal capture and troubleshooting.
Application Scope
- Troubleshooting three-phase power systems and industrial automation controls
- Commissioning variable speed motor drives and power conversion electronics
- Field service maintenance of heavy industrial machinery and process control systems
- Analyzing complex transient signals, induced noise, and intermittent electrical faults
Specifications
| Parameter | Specification |
| Bandwidth Options | 60 MHz, 100 MHz, 200 MHz, 500 MHz |
| Number of Channels | 2 or 4 isolated channels |
| Max Real-time Sampling Rate | Up to 5 GS/s |
| Safety Rating | CAT III 1000 V / CAT IV 600 V |
| Record Length | 10,000 points per channel (Scope mode) |
| Display | 5.3-inch high brightness color LCD (1120 x 765 pixels) |
| Protection Rating | IP51 dust and drip-proof |
| Battery Operation | Up to 7 hours with BP291 Li-Ion pack |
| Dimensions and Weight | 265 x 192 x 70 mm, 2.2 kg |
Package Contents
- Handheld Industrial Oscilloscope Fluke 190 Series III
- Universal Power Adapter / Charger BC190/830
- Li-Ion Battery Pack
- Voltage Probe Sets (2 or 4 pcs based on channel count)
- Test Leads TL175 (2-channel models)
- Handstrap and Hangstrap
- USB Interface Cable
