Compact True-RMS Multimeter for HVAC Professionals
The Fluke 116 Digital Multimeter is engineered specifically for heating, ventilation, and air conditioning (HVAC) specialists. Featuring a built-in thermometer for temperature measurements up to 400 °C and microamps to test flame sensors, this compact True-RMS meter provides accurate diagnostics while eliminating false readings caused by ghost voltage via its low input impedance LoZ mode.
Industrial Use Cases
- Flame Sensor Testing: Direct measurement of microamps (uA DC/AC) to verify proper operation of burner control circuits and flame safeguards.

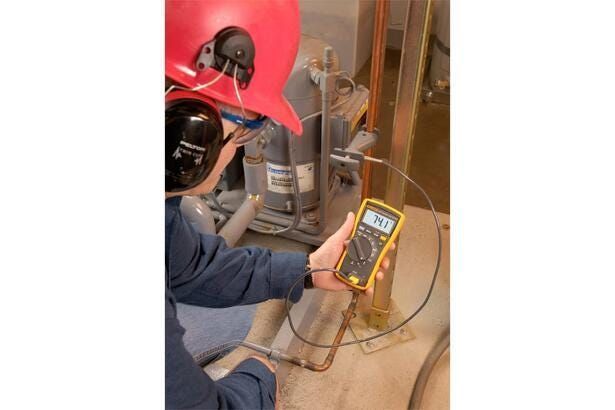

- HVAC Temperature Monitoring: Measuring flue gas, pipe, or ambient temperatures up to 400 °C using the included 80BK integrated temperature probe.
- Ghost Voltage Elimination: Safe testing of heating and cooling control circuits without interference from stray voltages using the LoZ low input impedance mode.
Key Specifications
| Parameter | Range / Detail |
|---|---|
| DC Voltage | Up to 600.0 V (Accuracy: 0.5% + 2) |
| AC Voltage (True-RMS) | Up to 600.0 V (Accuracy: 1.0% + 3) |
| AC/DC Microamps | Up to 600.0 uA (Accuracy: 1.0% + 2 DC / 1.5% + 3 AC) |
| Temperature | -40 °C to 400 °C (Accuracy: 1.0% + 10) |
| Resistance | Up to 40.00 MΩ |
| Capacitance | Up to 9999 uF |
| Safety Rating | CAT III 600 V |
Package Contents
- Fluke 116 HVAC Digital Multimeter
- 4 mm silicone test lead set
- 80BK Integrated Temperature Probe
- Protective holster with probe holders
- Installed 9 V Alkaline battery
- User manual
