Dimensions bearing:
Min. inside diameter Ø, vertical/horizontal 10/65 mm
Max. outside diameter Ø 400 mm
Max. width 120 mm
Max. weight 50 kg

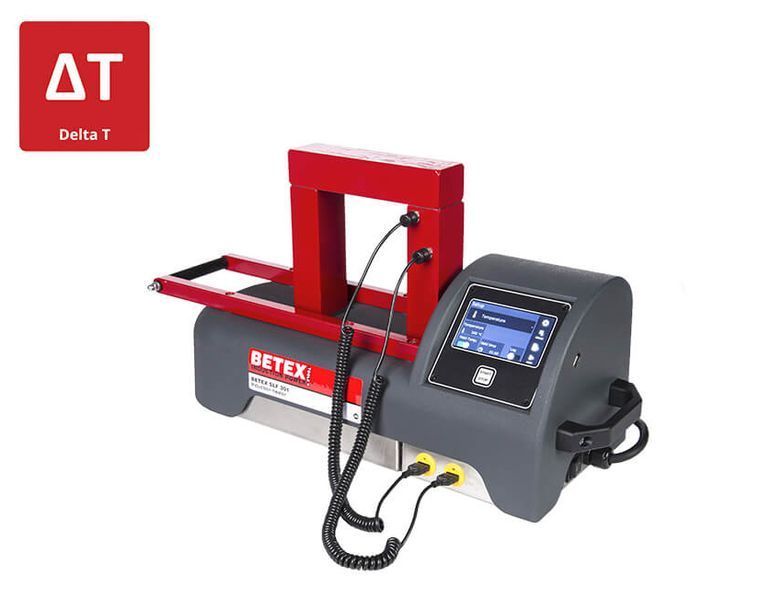

The SMART serie is used when more control over the heating process is needed. These have a modern easy-to-use touchscreen and 2 temperature probes for dual temperature sensing (Delta T)
- Portable model
- Double temperature measurement Delta-T, incl 2 magnetic temperature probes
- Touchscreen with clear graph shows heating process
- Log function to store data or export to a USB-stick
- Create proof of work
- Tension free heating
- Including 3 yokes: 7, 14, 40x50 mm
Temperature setting upto 240°C / 464°F
Automatic demagnetization, better than 2A/cm
Acoustic signal at the end of each heating cycle
Temperature hold
Time setting in minutes/seconds
Heats according to preset temperature/time curve
Incl. service kit and CE-manual
3 years warranty on the electronic unit
Including packing material
