Industrial True-RMS Multimeter Electronics Combo Kit
The Fluke 179/EDA2 Accessories Kit combines the industry-standard Fluke 179 True-RMS Digital Multimeter with an industrial-grade probe and lead package. Designed for maintenance technicians, this comprehensive solution enables precise testing of AC/DC voltage, current, resistance, capacitance, frequency, and temperature under strict CAT IV 600 V / CAT III 1000 V safety standards.
Industrial Use Cases
- HVAC and Mechanical Systems Maintenance: Direct temperature measurement of heat exchangers and piping using the included 80BK-A thermocouple probe.

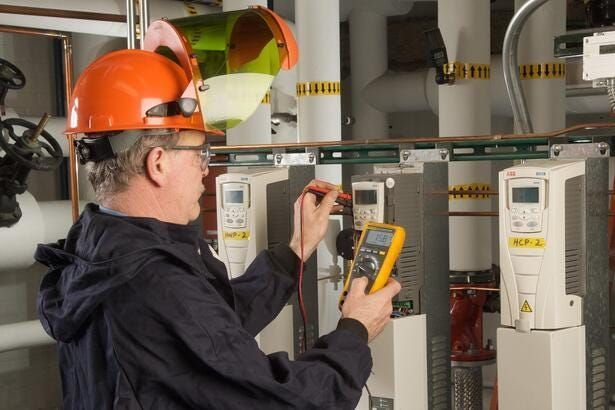

- Power Distribution Diagnostics: Measuring True-RMS AC/DC voltage up to 1000 V and current up to 10 A in heavy-duty distribution panels.
- Industrial Automation Troubleshooting: Checking control loop signals, frequency up to 100 kHz, and circuit continuity with ergonomic SureGrip accessories.
Key Specifications
| Parameter | Range / Detail |
|---|---|
| DC Voltage | Up to 1000 V (Accuracy: 0.09% + 2) |
| AC Voltage | Up to 1000 V True-RMS (Accuracy: 1.0% + 3) |
| AC/DC Current | Up to 10 A (Accuracy: 1.0% + 3 DC / 1.5% + 3 AC) |
| Temperature | -40 °C to 400 °C (Accuracy: 1.0% + 10) |
| Resistance / Capacitance | Up to 50 MΩ / Up to 10,000 μF |
| Frequency | Up to 100 kHz (Accuracy: 0.1% + 1) |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
Package Contents
- Fluke 179 True-RMS Digital Multimeter
- 80BK-A Integrated DMM Temperature Probe
- TL224 Silicone Insulated Test Leads
- TL910 Electronic Test Probes
- AC280 Heavy Duty Hook Clips
- TPAK ToolPak Magnetic Meter Hanger
- C35 Premium Soft Carrying Case
- Installed 9 V Battery
