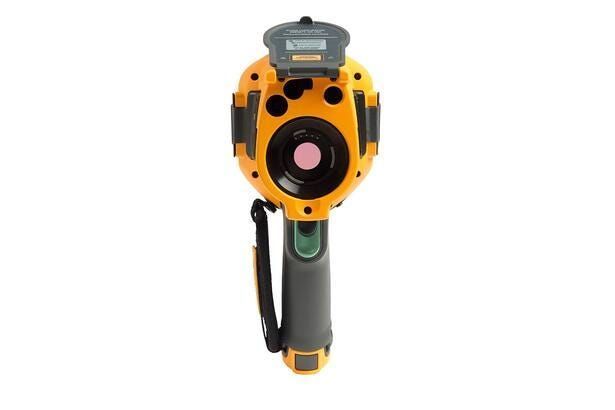

Infrared Camera Fluke Ti480 PRO 60 Hz 640x480 IP54
Description
The Infrared Camera Fluke Ti480 PRO 60 Hz 640x480 IP54 is a high-performance professional diagnostic tool designed for advanced thermographers and industrial engineers. Equipped with a 640 x 480 detector resolution and SuperResolution mode delivering up to 1280 x 960 images, this device ensures maximum image clarity. The integrated thermal imager features MultiSharp Focus and LaserSharp Auto Focus systems to ensure crisp images across the entire field of view, preventing costly diagnostic errors.
Application Scope
- Industrial equipment preventive maintenance and electrical system inspection
- Heavy commercial facility diagnostics and energy loss audit
- Commercial building envelope evaluation and structural defect detection
Specifications
| Detector Resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | 1280 x 960 (614,400 pixels) |
| Thermal Sensitivity (NETD) | ≤0.05 °C at 30 °C (50 mK) |
| Temperature Measurement Range | -20 °C to 1000 °C |
| Accuracy | ±2 °C or 2% |
| Frame Rate | 60 Hz |
| Display | 3.5 inch 640 x 480 LCD touchscreen |
| Focus Systems | MultiSharp Focus, LaserSharp Auto Focus, Manual |
| Ingress Protection / Drop Test | IP54 / 2-meter drop test |
Package Contents
- Thermal imager Fluke Ti480 PRO with standard lens
- AC power supply and battery pack charger
- Two rugged lithium-ion smart battery packs
- USB cable, HDMI cable, 4 GB micro SD card
- Rugged hard carrying case and soft transport bag
