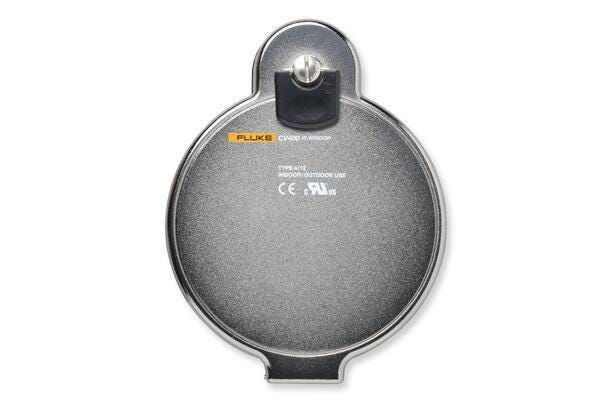

Infrared Window Fluke CV400 95 mm 4 in IP67
Description
The Infrared Window Fluke CV400 95 mm 4 in IP67 is a safety accessory designed for rapid thermal inspections of electrical enclosures without opening panel doors. Featuring a 95 mm viewing aperture, the Fluke CV400 significantly reduces the risk of arc-flash and electrocution during routine maintenance. Equipped with patent-pending AutoGround technology, this rugged infrared window grounds instantly to metal enclosures upon installation, installing in 5 minutes or less using a standard single-hole Greenlee punch.
Application Areas
Designed for industrial electricians, maintenance engineers, and plant safety inspectors. Primary application scenarios include:
- Thermal inspection of high-voltage and low-voltage switchgear panels
- Non-intrusive monitoring of motor control centers and distribution boards
- Preventive maintenance scans of transformer enclosures and electrical cabinets
- Offshore and marine switchgear thermography with Lloyds Register compliance
Specifications
| Optic Insert Diameter | 95 mm (3.74 in) |
| Viewing Aperture Diameter | 87.63 mm (3.45 in) |
| Viewing Aperture Area | 6032 mm2 (9.35 in2) |
| Arc Test Rating | 63 kA for 30 cycles at 60 Hz (IEEE C37.20.7) |
| Ingress Protection | IP67 / NEMA Type 4/12 |
| Grounding Technology | AutoGround instant grounding |
| Operating Temperature | -40°C to +232°C (-40°F to +450°F) continuous |
| Mounting Hole Diameter | 115.42 mm (4.544 in) |
| Overall Dimensions | 189.3 mm x 147.1 mm x 23.0 mm |
| Latch Mechanism | Hand turn and security key options |
Package Contents
- Infrared Window Fluke CV400 95 mm
- Attached identification plate
- Installation guide
