Insulation Multimeter Combo Kit with AC Current Clamp
The Fluke 1587/i400 FC Combo Kit combines the high-performance Fluke 1587 FC 2-in-1 Insulation Multimeter with the compact Fluke i400 AC Current Clamp. Designed for preventative maintenance and complex electrical troubleshooting, this system enables non-intrusive current measurements up to 400 A AC alongside insulation tests up to 1000 V under strict CAT IV 600 V / CAT III 1000 V safety ratings.
Industrial Use Cases

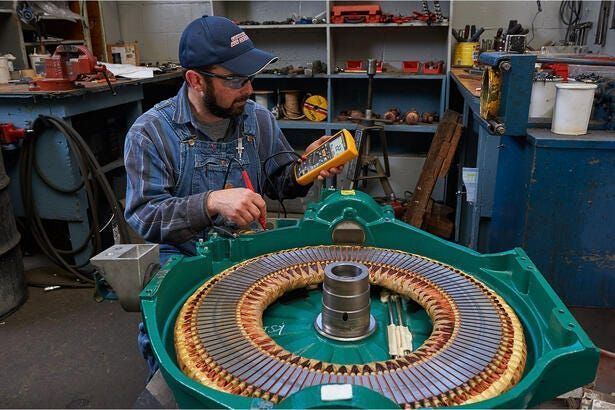

- Electric Motor and Drive Diagnostics: Measuring insulation resistance up to 2.0 Gohm with a VFD low-pass filter to eliminate high-frequency drive noise.
- Non-Break Load Monitoring: Safely measuring AC current up to 400 A on live conductors up to 32 mm in diameter without interrupting the circuit via the i400 clamp.
- Preventative Insulation Trending: Executing PI/DAR timed ratio tests and logging measurement data to smartphones via the Fluke Connect app to analyze component degradation over time.
Key Specifications
| Parameter | Fluke 1587 FC Multimeter | Fluke i400 Current Clamp |
|---|---|---|
| Primary Function | Insulation Multimeter True-RMS | AC Current Clamp Accessory |
| Measurement Range | 0.01 Mohm to 2.0 Gohm insulation; 1000 V AC/DC | 1 A to 400 A AC |
| Test Voltages / Output | 50 V, 100 V, 250 V, 500 V, 1000 V | 1 mA/A output signal |
| Features / Conductor Size | VFD Low-pass filter, Auto-discharge | Max conductor diameter: 32 mm |
| Safety Category | CAT IV 600 V / CAT III 1000 V | CAT IV 600 V / CAT III 1000 V |

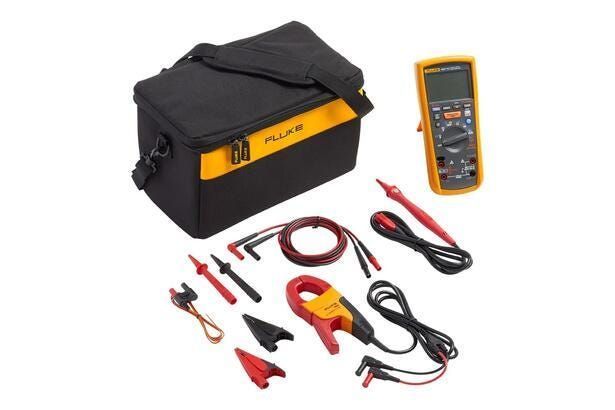

Package Contents
- Fluke 1587 FC 2-in-1 Insulation Multimeter
- Fluke i400 AC Current Clamp
- Remote Control Test Probe
- TL224 Silicone Test Lead Set
- AC285 Heavy Duty Alligator Clips
- Type-K Thermocouple Probe
- Hard Protective Carrying Case
- Installed AA Batteries
