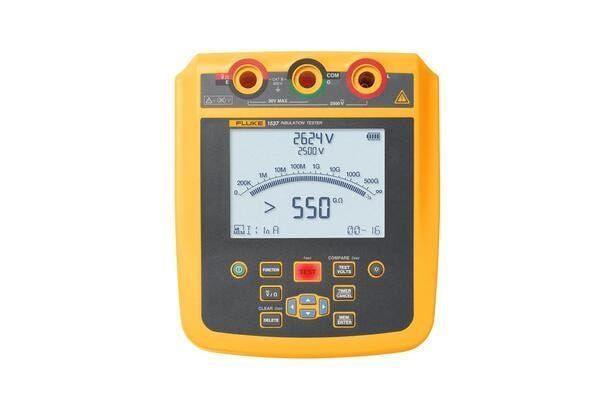

Insulation resistance tester Fluke 1537 2500V 500GOhm megohmmeter
Description Fluke 1537
The insulation resistance tester Fluke 1537 is a high-precision, portable high-voltage megohmmeter designed for industrial equipment diagnostics and field troubleshooting. Featuring selectable test voltages from 250 V to 2500 V with fine-tuning in 100 V increments, the Fluke 1537 measures insulation resistance up to 500 GΩ. Equipped with a 5 mA short-circuit current, automatic calculation of PI, DAR, and DD, ramp test mode, and PC software connectivity, this CAT IV 600 V tool delivers fast and reliable measurements.
Application field Fluke 1537

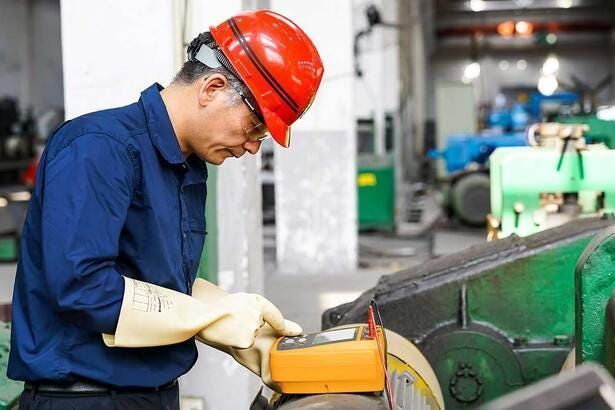

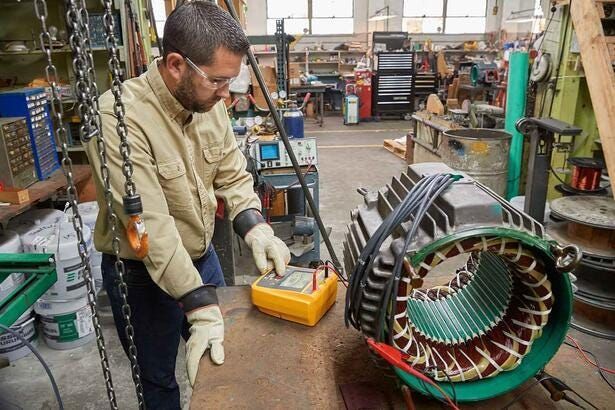

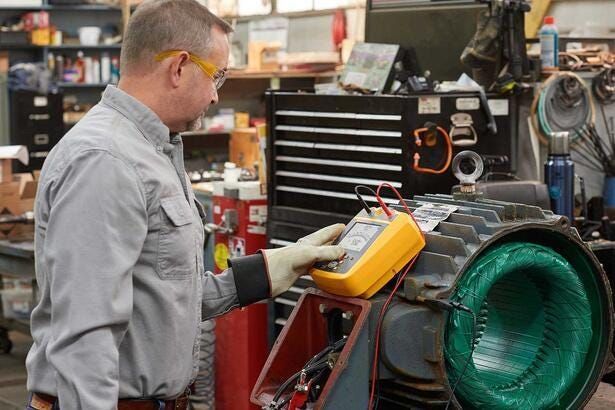

The insulation resistance tester Fluke 1537 is engineered for industrial electricians, power utility engineers, solar installation technicians, and field maintenance personnel. It is widely applied for inspecting high-voltage electric motors, transformers, industrial switchboards, solar photovoltaic systems, and power cables in factory floor and outdoor environments.
Specifications Fluke 1537
| Test Voltages | 250 V, 500 V, 1000 V, 2500 V (adjustable in 100 V steps) |
| Insulation Resistance Range | Up to 500 GΩ |
| Short Circuit Current | Up to 5 mA |
| Calculations | PI (Polarization Index), DAR (Dielectric Absorption Ratio), DD (Dielectric Discharge) |
| Special Test Modes | Ramp test (100 V/s), fine-tunable voltage |
| Voltage Measurement | 0 V to 600.0 V AC/DC |
| Resistance Measurement | 0 Ω to 60.00 kΩ |
| Display | 73.5 mm x 104 mm LCD |
| Data Storage | Internal memory with PC software transfer |
| Safety Rating | CAT IV 600 V, IEC 61010-1, IEC 61557-1/2 |
| Ingress Protection | IP40 |
| Power Supply | 8 AA alkaline cells (IEC LR6) |
| Dimensions & Weight | 184 mm x 211 mm x 93 mm / 1.3 kg |

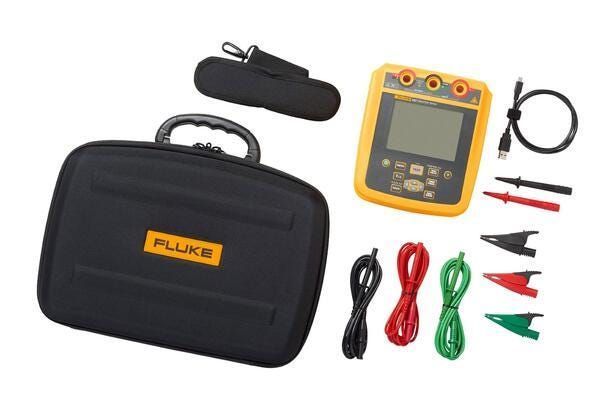

Package contents Fluke 1537
- Insulation resistance tester Fluke 1537
- Test leads with alligator clips
- USB data transfer cable
- PC software
- Soft carrying case
- 8 AA batteries
- User manual and safety documentation
