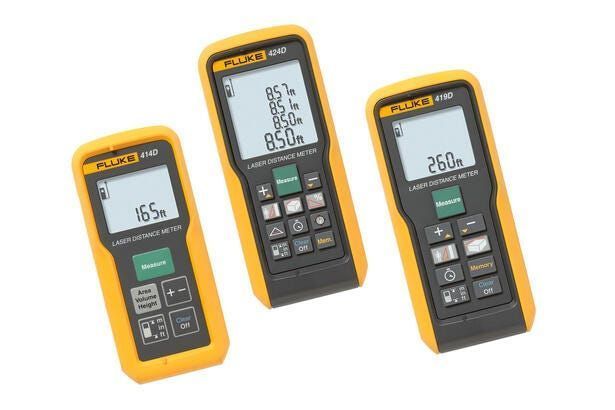

Laser Distance Meter Fluke 424D 100m Compass Tilt Sensor
Description
The Fluke 424D is a highly sophisticated laser distance meter designed to deliver fast and accurate measurements up to 100 meters with an accuracy of +-1.0 mm. Packed with advanced diagnostic features, the Fluke 424D integrates a 180-degree inclination sensor for precise height tracking and leveling, a built-in compass for directional orientation, and automated end-piece position correction. Featuring a large four-line backlit display, enhanced Pythagoras calculation capabilities, and IP54 industrial protection, this rugged rangefinder simplifies complex site measurements for single-person operation.
Application Scope
Engineered for industrial construction, engineering surveys, and facility management:
- Indirect distance, height, and diagonal calculations in complex structural environments
- Accurate area, volume, and stake-out measurements for construction planning and interior fitting
- Long-distance indoor and outdoor layout mapping using tripod-mounted stability
Specifications
| Parameter | Value |
| Measuring Range | Up to 100 m (330 ft) |
| Typical Measuring Tolerance | +-1.0 mm |
| Tilt Sensor Range | 360 deg (Tolerance +-0.2 deg) |
| Display | 4-line backlit LCD |
| Memory | Stores last 20 measurements |
| Environmental Protection | IP54 (dust and spray water proof) |
| Laser Class and Type | Class II, 635 nm, < 1 mW |
| Auto Laser / Power Off | After 90 sec / 180 sec |
| Battery Life | Up to 5,000 measurements (2 x AAA 1.5V) |
| Dimensions and Weight | 127 x 56 x 33 mm, 158 g |
Package Contents
- Fluke 424D Laser Distance Meter
- Two AAA Batteries
- Carrying Pouch
- User Manual
