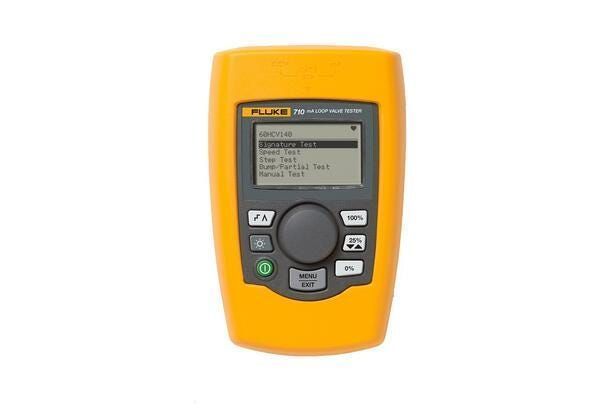

Loop Calibrator and Valve Tester Fluke 710 HART mA
Description
The Loop Calibrator and Valve Tester Fluke 710 HART mA is a precision diagnostic instrument designed for rapid testing of HART smart control valves. Combining mA loop calibrator functions with built-in HART communication, the Fluke 710 allows technicians to source and simulate 4-20 mA signals while simultaneously evaluating valve position and internal pressure feedback. Featuring pre-configured valve signatures, step tests, and partial stroke tests, this rugged device provides clear Good, Marginal, or Bad status assessments, with full data export to the included ValveTrack software for trending and analysis.
Application Scope
Designed for process control technicians, instrumentation engineers, and industrial plant maintenance personnel.
- In-line diagnostic testing and troubleshooting of HART smart control valves under live process conditions
- Calibration and verification of 4-20 mA current loops, I/P converters, and field transmitters
- Data logging process variables and uploading device configurations for predictive plant maintenance
Specifications
| Functions | mA source, mA simulate, mA read, mA read/loop power, volts read |
| mA Range | 0 to 24 mA (Resolution: 1 µA) |
| Volts Range | 0 to 30 V DC (Resolution: 1 mV) |
| Accuracy | 0.01% ± 2 counts (all ranges) |
| Loop Power Supply | 24 V DC @ 20 mA |
| HART Resistor | Built-in selectable 250 Ω resistor |
| Data Logging Memory | Up to 4910 records or 99 individual sessions |
| Display | 128 x 64 pixels graphic LCD with backlight |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Power Supply and Life | 6 AAA alkaline batteries, 40 hours continuous use |
| Dimensions and Weight | 15 x 9 x 3 cm, 0.3 kg |
Package Contents
- Loop Calibrator and Valve Tester Fluke 710
- Traceable calibration certificate with data
- Test lead set and alligator clips
- USB data transfer cable
- ValveTrack analysis software
- 6 AAA alkaline batteries
