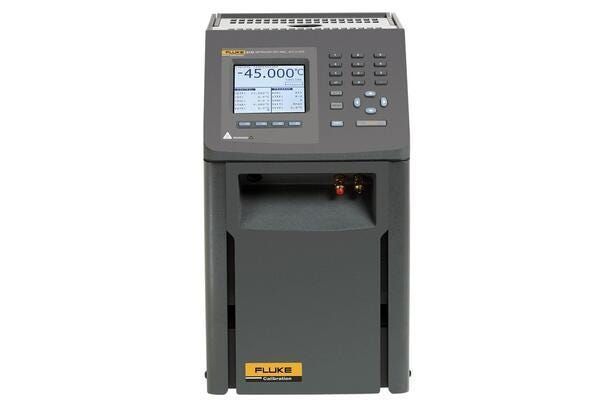

Metrology Well Fluke Calibration 9170 -45 C to 140 C
Description
The Metrology Well Fluke Calibration 9170 -45 C to 140 C is a primary-level dry-block heat source engineered for maximum accuracy and stability. The Fluke Calibration 9170 provides an extraordinary temperature stability of ±0.005 °C and an axial uniformity of ±0.02 °C over a 60 mm zone, making it an essential reference tool for demanding thermal metrology labs.
Application field
Designed for high-accuracy thermal calibration and sensor testing in labs and process plants.
- Pharmaceutical and biomedical process thermometer testing
- Calibration of reference PRTs, RTDs, thermistors, and thermocouples
- Metrology laboratory reference temperature maintenance
Specifications
| Temperature Range (at 23 °C) | -45 °C to 140 °C (-49 °F to 284 °F) |
| Display Accuracy | ±0.1 °C full range |
| Stability | ±0.005 °C full range |
| Axial Uniformity (60 mm zone) | ±0.02 °C at 0 °C |
| Radial Uniformity | ±0.01 °C full range |
| Well Immersion Depth | 160 mm (6.3 in) |
| Heating Time | 23 °C to 140 °C: 32 min |
| Cooling Time | 23 °C to -45 °C: 44 min |
| Computer Interface | RS-232 with 9930 Interface-it software |
| Dimensions & Weight | 366 x 203 x 323 mm, 14.2 kg |
Equipment
- Metrology Well Fluke Calibration 9170 base unit
- RS-232 interface cable and 9930 Interface-it software
- NIST-traceable calibration report with data
- Power cord
