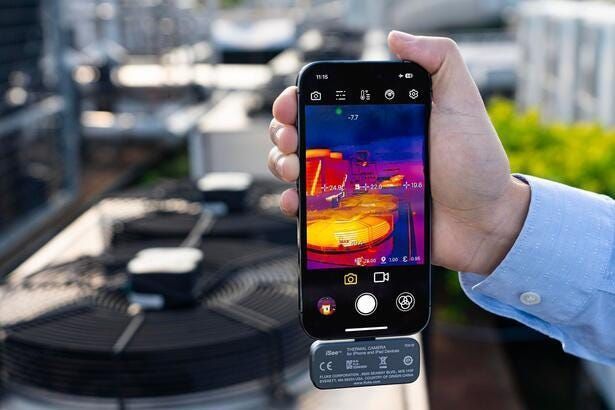

Mobile Thermal Camera Fluke iSee TC01A Type-C Android 256x192 25Hz
The Mobile Thermal Camera Fluke iSee TC01A Type-C Android 256x192 25Hz is an ultra-compact, professional-grade mobile thermal camera designed to turn Android devices into high-resolution infrared inspection tools. Powered by a 256 x 192 IR sensor and running at a smooth 25 Hz frame rate, the Fluke iSee TC01A delivers crisp thermal imaging and accurate temperature measurements up to 550 °C for demanding diagnostic tasks.
Application Field
- Inspection of electrical cabinets, circuit breakers, and power distribution terminals
- HVAC system troubleshooting, ductwork leak detection, and underfloor heating analysis
- Building envelope diagnostics, insulation inspection, and mechanical equipment monitoring
Specifications
| IR Resolution & Pixel Size | 256 x 192 pixels, 12 μm |
| Temperature Measurement Range | -10 °C to 550 °C (14 °F to 1022 °F) |
| Measurement Accuracy | ±2% of reading or ±2 °C (3.6 °F), whichever is greater |
| Thermal Sensitivity (NETD) | 50 mK (0.05 °C) |
| Frame Rate & Focal Length | 25 Hz, Fixed focal length 3.2 mm |
| Field of View & Spatial Resolution | 56° x 42°, 3.81 mrad |
| Interface & Compatibility | USB Type-C, Android and HarmonyOS |
| Protection Rating & Drop Test | IEC 60529 IP54 (with protective cover), 1 m drop test |
| Weight & Dimensions | 22 g, 60 x 33.5 x 11.2 mm |
Scope of Delivery
- Mobile Thermal Camera Fluke iSee TC01A
- Type-C protective cover
- Carrying case
- Quick reference guide
