Aluminum additive manufacturing, particularly in wire-based 3D printing, creates a highly challenging environment for temperature monitoring. Accurate observation of the melt pool is essential for ensuring process stability, repeatability, and final product quality. However, conventional infrared measurement methods often fail under such conditions due to strong optical disturbances and material-specific properties.
The complexity of the process is driven by several key factors:
- high reflectivity of aluminum surfaces
- plasma radiation from high-temperature tungsten electrodes
- continuously changing melt pool geometry
- unstable emissivity during melting and solidification
These effects lead to signal distortion, measurement saturation, and unreliable results when using standard infrared cameras.
Test Setup and Observations
A comparative evaluation was conducted using several infrared cameras, including the Optris CSvision 2ML, Xi 1M, and Xi 320 MT. The goal was to assess their ability to monitor the aluminum melt process under real operating conditions.
The results clearly highlighted the limitations of conventional systems. Cameras such as Xi 1M and CSvision were significantly affected by plasma interference, producing distorted thermal images with visible “stripe” artifacts and saturated measurement signals. This made reliable monitoring of the process difficult.

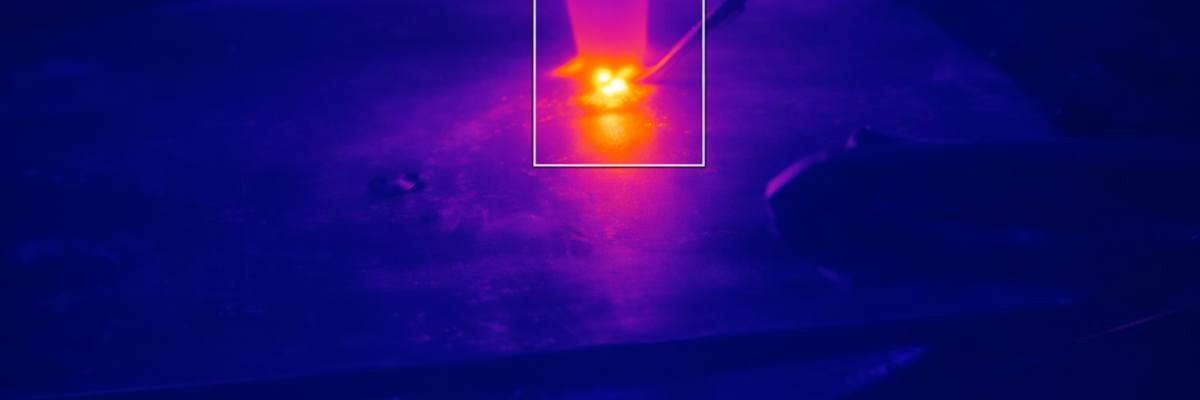

In contrast, the Optris Xi 320 MT demonstrated stable and consistent performance. The camera provided clear visualization of the aluminum melt pool and allowed observation of surface changes during both melting and solidification. While precise absolute temperature measurement remained limited, the system enabled reliable qualitative analysis of the process .
Technical Advantage of Xi 320 MT
The key advantage of the Xi 320 MT lies in its spectral range of 3.9 µm, which is specifically optimized for measurements in environments with flames, plasma, and hot gases. This significantly reduces the influence of optical interference and allows the camera to capture usable thermal data where other systems fail.
The camera is designed for industrial applications and offers:
- temperature range from 475 °C to 1700 °C
- 320 × 240 pixel optical resolution
- compact and robust IP67-rated housing
- flexible integration via Ethernet, USB, and process interfaces
These features make it suitable for continuous monitoring in demanding environments .
Application Value
Although accurate absolute temperature measurement remains challenging in aluminum 3D printing, the Xi 320 MT provides significant value through reliable thermal visualization. It enables operators to better understand and control the process.
In practical terms, the system allows:
- visualization of the melt pool in real time
- detection of melting and solidification phases
- monitoring of process stability
- identification of anomalies and irregularities
This transforms a previously difficult-to-measure process into one that can be effectively monitored and analyzed.
To achieve optimal performance, several implementation aspects should be taken into account. Combining infrared imaging with a visible-light camera can improve process interpretation. Using narrow field-of-view optics helps focus on the melt zone, while reducing the distance between the camera and the target improves image quality. In addition, application-specific calibration can enhance measurement consistency.
