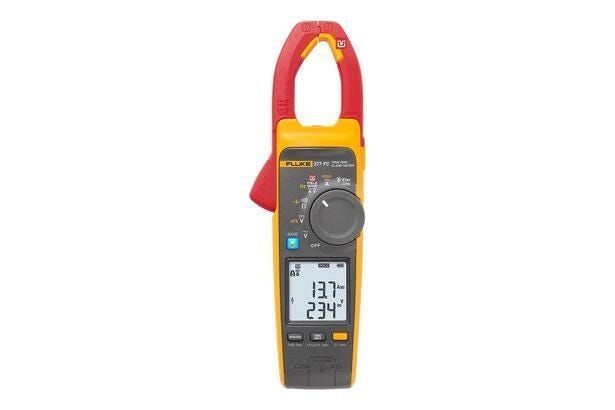

Non-Contact Voltage Clamp Meter Fluke 377 FC True-RMS AC/DC with iFlex
Description
The Non-Contact Voltage Clamp Meter Fluke 377 FC True-RMS AC/DC with iFlex revolutionizes electrical testing with innovative FieldSense technology. Utilizing this non-contact voltage clamp meter, engineers can measure voltage and current simultaneously through the clamp jaw without contacting exposed conductors. The Fluke 377 FC streamlines 3-phase measurements into three simple steps and includes an iFlex flexible current probe to measure AC current up to 2500 A in confined spaces.
Application Area

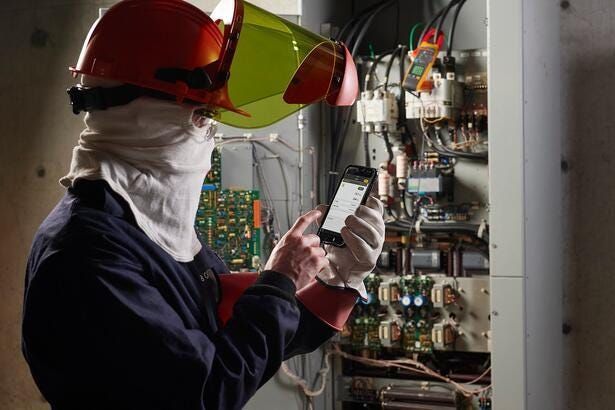

Application area of Non-Contact Voltage Clamp Meter Fluke 377 FC True-RMS AC/DC with iFlex: Designed for industrial maintenance technicians, commercial electricians, and facility engineers responsible for rapid 3-phase system testing, motor drive troubleshooting, and preventive maintenance reporting using Fluke Connect cloud integration.
Specifications
| FieldSense AC Voltage | 1000 V (Accuracy ≤4/0 AWG: 3% ±5 digits) |
| Test Lead AC Voltage | 600.0 V / 1000 V (Accuracy 1% ±5 digits) |
| DC Voltage | 600.0 V / 1000 V (Accuracy 1% ±10 digits) |
| Jaw AC Current | 999.9 A (Accuracy 2% ±5 digits) |
| Jaw DC Current | 999.9 A (Accuracy 2% ±5 digits) |
| iFlex Flexible Probe AC Current | 2500 A (Accuracy 3% ±5 digits) |
| Resistance Range | 600.0 Ω / 6000 Ω / 60.00 kΩ (Accuracy 1% ±5 digits) |
| Capacitance Range | 1000 μF (Accuracy 1% ±4 digits) |
| Frequency Range | 5.0 Hz to 500.0 Hz |
| Safety Rating | IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V |
| Ingress Protection | IP30 (jaw closed) |
| Wireless Connectivity | Fluke Connect software support |
| Dimensions / Weight | 274 x 86 x 47 mm / 463 g |
| Power Supply | 2 AA alkaline batteries (200 hours) |
Package Contents
- Clamp Meter Fluke 377 FC
- iFlex Flexible Current Probe (1.8 m)
- TL224 Silicone Test Leads
- TP175 Adjustable Test Probes
- AC285 Ground Clip
- Carrying Case
- User Manual
