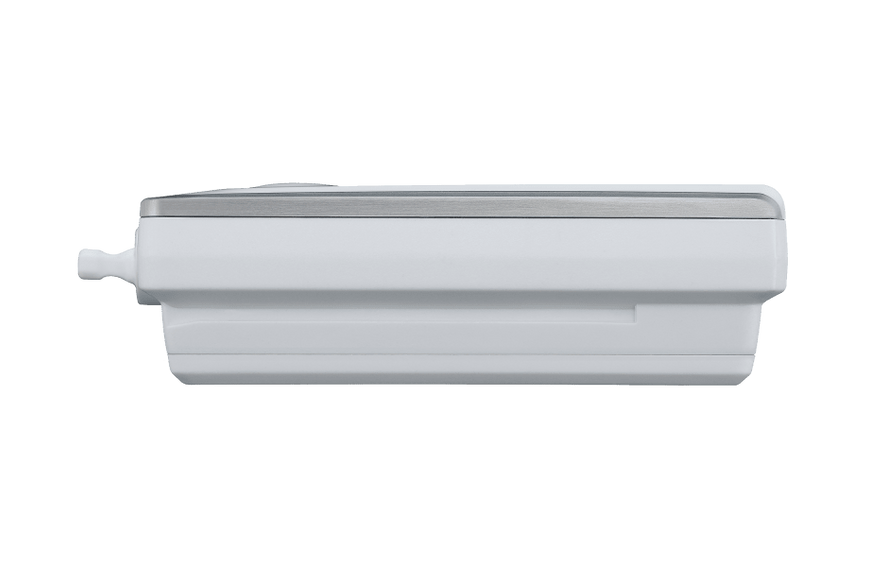

Testo 162 H1 Online Temperature and Humidity Data Logger
The Testo 162 H1 online data logger is a professional-grade WLAN-enabled recording device designed for automated climate monitoring. Featuring an integrated NTC temperature sensor and a high-precision capacitive humidity sensor, it provides reliable environmental tracking with instant site data visualization on its large digital display. Integrated with the testo Smart Connect platform, the device transmits climate metrics via wireless LAN, enabling centralized management, cloud-based data storage, and automated documentation. This system is essential for maintaining strict environmental standards in storage and facility management.
Industrial & Laboratory Applications
- Automated Climate Monitoring: Real-time logging of temperature and humidity conditions with automated cloud archiving.
- Facility Microclimate Management: Continuous tracking of critical environmental parameters in pharmaceutical warehouses and clean rooms.
- Safety & Compliance Reporting: Automated alert delivery via e-mail, SMS, or app notifications upon limit value violations.
Technical Characteristics
| Sensor Architecture | 1x internal NTC temperature probe, 1x internal capacitive humidity sensor |
| Temperature Measuring Range | -30 to +50 °C |
| Humidity Measuring Range | 0 to 100 %RH (non-condensing) |
| Measurement Accuracy | ±0.5 °C temp; ±3–5 %RH (dependent on range) |
| Measurement Resolution | 0.1 °C / 0.1 %RH |
| Memory Capacity | 10,000 readings per channel |
| Network Connectivity | Wireless LAN (IEEE 802.11 b/g/n) with comprehensive WPA2 security protocols |
| Protection Rating | IP30 housing |
| Hardware Dimensions | 115 x 82 x 31 mm; weight 240 g |
| Power Management | Internal batteries with 12 months field lifecycle |
Package Contents
- Testo 162 H1 online digital climate logger
- Factory calibration protocol
- Technical manual
