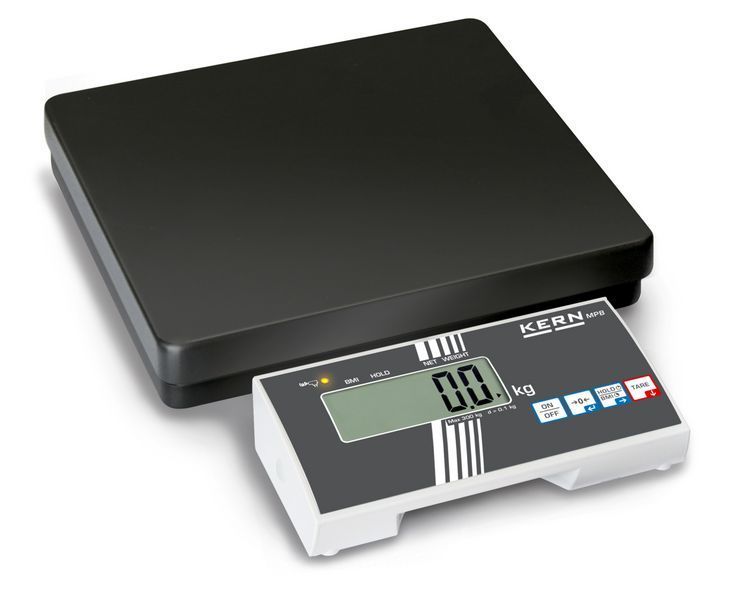

- Sturdy steel weighing plate with a non-slip and wear-resistant surface
- Easy and hygienic cleaning
- Secure and non-slip positioning with rubber feet
- Hold function: While weighing patients that are unable to stand still, a mean average weight value is determined. This allows for sufficient time to attend to the patient, and then get a weight reading
- Simple and convenient 4-key operation
- BMI function to determine underweight/normal weight/surplus weight
- Wall mount for the display device, as standard, only for models without a stand
- Battery- or mains-powered
- Gyms
- Wellness and spa facilities
- Workplace health promotion
- Public facilities
- Pharmacies and healthcare supply stores (non-medical)
Weighing range (Max): 300 kg
Readability (g): 0,1 kg
Reproducibility: 0,1 kg
linearity: ± 0,2 kg
Weighing system: Strain gauge
Stabilization time: 2 s
Article number for conformity assessment: 965-229
Article number for DAkkS calibration: 963-129
Dimension completely mounted (W×D×H): 500×400×117 mm
Dimension completely mounted (Width): 500 mm
Dimension completely mounted (Depth): 400 mm
Dimension completely mounted (Height): 117 mm
Material weighing plate: stainless steel
Dimension weighing platform (W×D×H): 500×400×140 mm
Dimension weighing platform (Width): 500 mm
Dimension weighing platform (Depth): 400 mm
Dimension weighing platform (Height): 140 mm
Dimensions weighing surface (W×D): 500×400 mm
Dimension weighing surface (Width): 500 mm
Dimension weighing surface (Depth): 400 mm
Display type: LCD
Display digit height: 16,5 mm
Units: kg
Supplied power supply: Power supply unit
Battery / accumulator type: Pb
Rechargeable battery optional: Rchrg. battery optional (factory)
Rechargeable battery charging time: 12 h
Rechargeable battery operating time - backlight on: 8 h
Rechargeable battery operating time - backlight off: 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode: 3 min,off
Input voltage power supply / power [Max]: 100 - 240 V~ 50/60 Hz 190 mA
Plug-in power supply / adapter for countries - included with the delivery: EURO,UK,US,CH
Plug-in power supply / adapter for countries - option: EURO,AUS,UK,US,CH
Plug-in power supply type: Power adapter
Interfaces: RS-232 standard
Humity of environment [Max]: 80 %
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 15 kg
Net weight: 12 kg
UN number (hazardous goods): no dangerous goods
Airworthy: yes, without restrictions
Shipping method: Parcel service
Dimensions packaging (W×D×H): 930×545×210 mm
Dimensions packaging Width: 930 mm
Dimensions packaging Depth: 545 mm
Dimensions packaging Height: 210 mm
Total packaging weight: 2,5 kg
Packaging component carton/cardboard: 2,5 kg
Cable length: 2,5 m
Load cell connection: 4-wire
Pictograms Standard: External adjustment; Device-internal Memory; Data interface RS-232; Interface command set KERN Communication Protocol (KCP); GLP/ISO Protocol; Value & time; Piece counting function; Sum function; Measuring with tolerance range (checkweighing function); Universal plug-in power supply; Weighing principle Strain gauges; Package shipment 1 day
Pictograms Option: Accredited calibration (DKD)
Pictograms Factory: Rechargeable battery; Conformity assessment
Accessories: IFB-A01; IFB-A02; KFB-A02; CFS-A03; CFS-A04; YKN-01; YKI-02; YRO-02; AFH 13; YKH-01; CFS-A01; YGR-01; YKI-10; YKI-11; YKI-12; YKT-01; KFB-A01; PFB-A03; PFB-A04; PFB-A05; PFB-A02
Technical Data Sheet (PDF)
