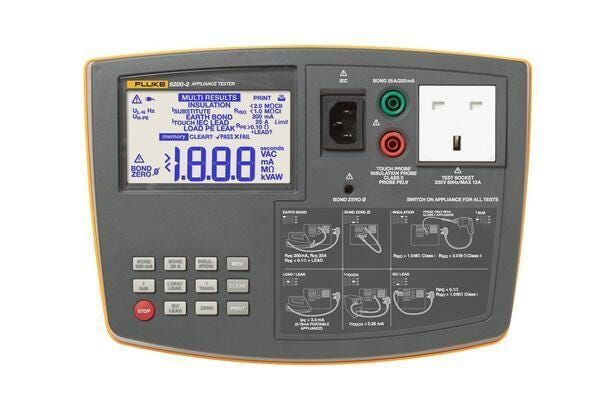

Portable Appliance Tester Fluke 6200-2 Auto-Test BS EN 50678
The Portable Appliance Tester Fluke 6200-2 Auto-Test BS EN 50678 is a compact, high-speed portable appliance tester designed for simplified standard-compliant safety testing. Featuring pre-set pass-fail threshold levels, dedicated one-touch action keys, and dynamic USB data export capability, the Fluke 6200-2 accelerates routine volume inspections in full compliance with BS EN 50678 and BS EN 50699 regulatory requirements.
Application Field
- Routine electrical safety testing of industrial tools, commercial appliances, and office machinery
- Periodic verification and field inspection of power cables, extension leads, and IEC mains connections
- Quality assurance auditing carried out by electrical contractors, facility maintenance teams, and field service technicians
Specifications
| Power-on Test Voltage Range | 90 V to 264 V AC, Accuracy ±(2% + 3 counts), Resolution 1 V |
| Earth Bond Test (Rpe) Range | 0 to 19.99 Ω, Accuracy ±(2.5% + 4 counts), Resolution 0.01 Ω |
| Earth Bond Test Currents | 200 mA AC (-0% +40%), 25 A AC ±20% into 25 mΩ at 230 V |
| Insulation Test (Riso) Range | 0 to 299 MΩ, Accuracy ±(5% + 2 counts), Resolution 0.01 MΩ |
| Insulation Test Voltage & Current | 500 V DC -0% +10% at 500 kΩ load, Test Current > 1 mA |
| Touch Current Test Range | 0 to 1.99 mA AC, Accuracy ±(4% + 2 counts), Internal Resistance 2 kΩ |
| Substitute Leakage Current Range | 0 to 19.99 mA AC, Accuracy ±(2.5% + 3 counts), Test Voltage 100 V AC ±20% |
| Load Current & Power Test | 0 A to 13 A, Load Power 0.0 VA to 3.2 kVA at 230 V Mains |
| Load Leakage Current Test | 0 to 19.99 mA AC, Accuracy ±(4% + 4 counts), Resolution 0.01 mA |
| PELV Test Warning Threshold | 25 V rms, Overload protection 300 V rms |
| Safety Rating & Environment | EN61010-1 3rd Edition, CAT II 300 V, Operating Temp 0 to 40 °C, Protection IP40 |
| Dimensions & Weight | 200 x 275 x 114 mm, Weight 3.13 kg |
Scope of Delivery
- Portable Appliance Tester Fluke 6200-2 Auto-Test BS EN 50678
- Detachable test lead and probe
- Alligator clip
- USB transfer port interface
- Rugged hard carrying case with accessory storage
