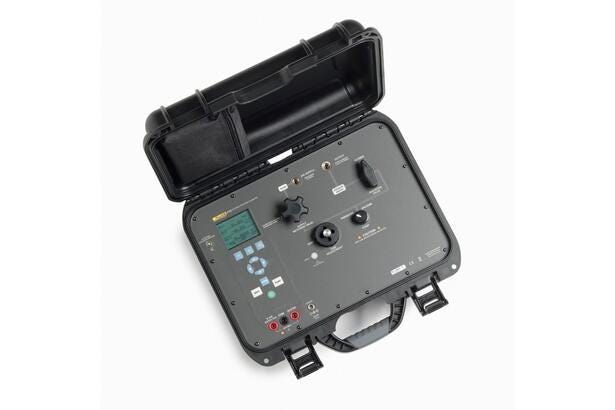

Portable Pressure Calibrator Fluke 3130-G2M motorized pump 2 MPa
Description
The Portable Pressure Calibrator Fluke 3130-G2M motorized pump 2 MPa is a complete mobile solution for field and laboratory instrument testing. Featuring an integrated motorized pump for automatic pressure generation up to 2 MPa (300 psi, 20 bar), the Portable Pressure Calibrator Fluke 3130-G2M motorized pump 2 MPa allows technicians to perform rapid transmitter calibration, electrical signal measurement, and pressure switch verification with high accuracy.
Application Scope
Engineered for instrumentation technicians, plant maintenance personnel, and metrology specialists across processing industries.
- Field testing and calibration of pressure transmitters, transducers, and gauges
- Automated pressure generation without manual hand pumping
- Simultaneous 24 V DC loop power supply and 4-20 mA current measurement
Specifications
| Pressure Generation Range (Internal Pump) | -80 kPa to 2 MPa (-12 to 300 psi) |
| External Pressure Supply Range | 0 to 2 MPa (0 to 300 psi) |
| Pressure Accuracy | ±(0.025% of reading + 0.01% FS) |
| DC Current Measurement / Source | 0 to 24.000 mA (0.015% rdg + 0.002 mA) |
| DC Voltage Measurement | 0 to 30.000 V DC (0.015% rdg + 0.002 V) |
| Engineering Units | psi, bar, mbar, kPa, MPa, kgf/cm2, mmH2O, inH2O, mmHg, inHg |
| Battery Type | Internal 3800 mAh NiMH pack (up to 50 hours run time) |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 15.25 x 12 x 7 in (387 x 305 x 178 mm) |
| Weight | ~7 kg (15 lb) |
Scope of Delivery
- Portable Pressure Calibrator Fluke 3130-G2M motorized pump 2 MPa
- Universal AC adapter and charger
- Test lead set and alligator clips
- NIST-traceable calibration certificate
- User manual
