PV Analyzer I-V Curve Tracer Fluke PVA-1500HE2 SolSensor 1500V 30A
The PV Analyzer I-V Curve Tracer Fluke PVA-1500HE2 SolSensor 1500V 30A is an advanced measurement system engineered for high-throughput testing of modern photovoltaic installations. Designed to handle high-efficiency modules with currents up to 30A and voltages up to 1500V DC, the Fluke PVA-1500HE2 provides precise I-V curve tracer performance to verify array yield, detect performance outliers, and streamline commissioning in demanding industrial environments.
Application Field
- Commissioning and acceptance testing of utility-scale and commercial PV power plants
- Preventive maintenance, performance auditing, and fault diagnostics of high-efficiency solar arrays

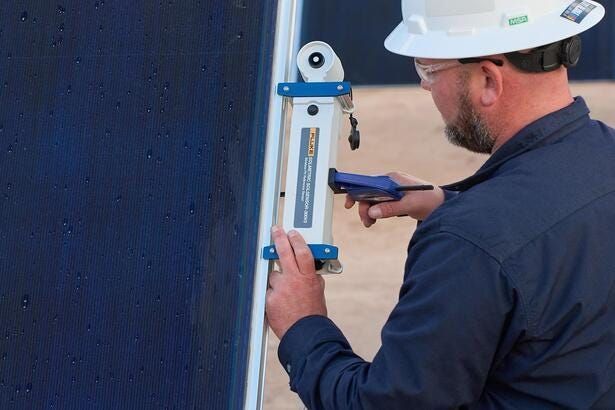

- Wireless measurement of irradiance, cell temperature, and array tilt using the included SolSensor module
Specifications
| Voltage Range (Voc) | 20 to 1500 V DC, Resolution 25 mV, Accuracy ±(0.5% ±0.25 V) |
| Current Range (Isc) | 0 to 30 A DC (High Efficiency ≥19% and standard modules), Resolution 2 mA |
| Power Measurement Accuracy | ±(1.7% + 1.0 W) (current ≥3 A) |
| Measurement Throughput | Sweep-to-sweep delay <9 s (@Voc ≤ 1350V), up to 400 sweeps/hr (3.5 MW/hr) |
| I-V Trace Points & Duration | 100 or 500 selectable points, Sweep duration 0.05 to 2 s |
| Wireless SolSensor Range | 100 m line-of-sight WiFi interface (2.4 GHz) |
| Irradiance Sensor (SolSensor) | Silicon photodiode, 100 to 1500 W/m², Accuracy ±2% |
| Temperature Inputs (SolSensor) | Type K thermocouple (2 external inputs), Range 0 °C to 100 °C |
| Safety Standards & Rating | IEC 61010-1, CAT III 1500V, Pollution Degree 2 |
| Dimensions & Weight | Main unit weight 7.3 kg, Enclosure dimensions 53.3 x 21.6 x 15.2 cm |
Scope of Delivery

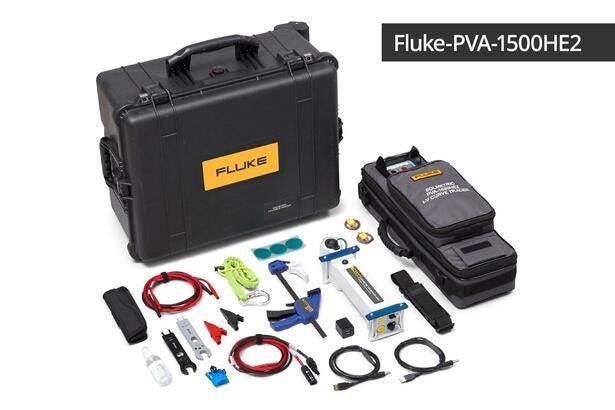

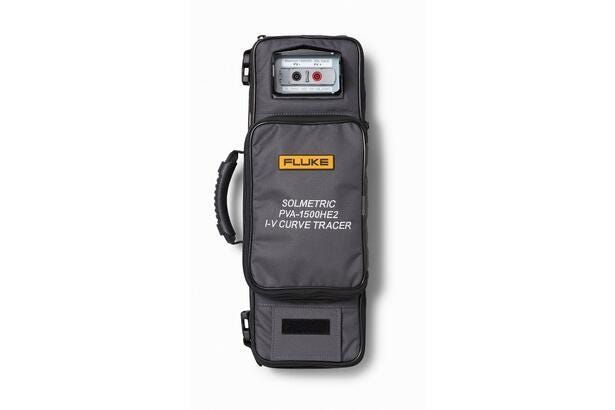

- Fluke PVA-1500HE2 I-V Curve Tracer Unit
- SolSensor Wireless PV Reference Sensor with frame clamp
- Staubli MC4-EVO2 test leads and alligator clips
- PVA Application Software and Data Analysis Tool (DAT)
